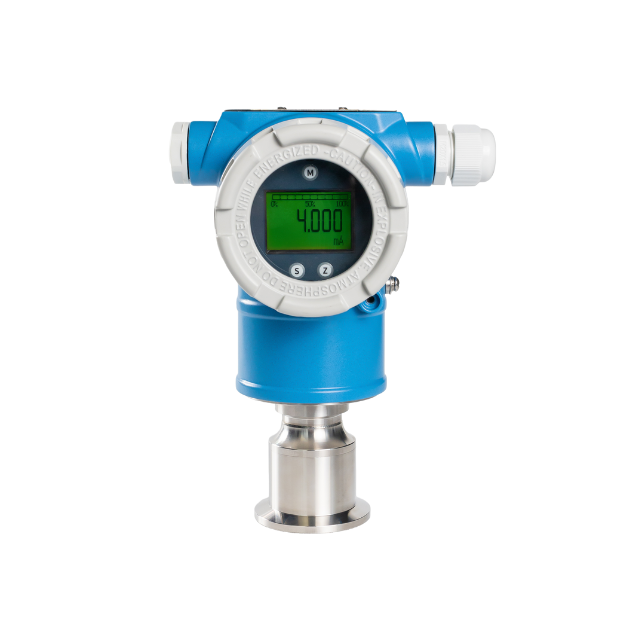

Single-Flange Transmitter
The TS1901 Series Gauge Pressure Transmitter is a high-performance pressure measurement masterpiece, meticulously crafted by DANRUI with world-leading technologies as its brushstroke. Its sensor, like a precision “high-altitude observer”, effortlessly achieves dual mechanical and thermal isolation, forging a solid physical barrier for accurate measurement. The glass-sintered sensor leads, akin to “insulation sentinels”, construct a high-strength electrical insulation fortress around the metal base. They not only endow the electronic circuit with agile adaptability but also significantly enhance transient voltage interference protection, ensuring stable operation even under complex working conditions. The TS1901 Series navigates extreme chemical environments and harsh mechanical loads with ease, and with its robust electromagnetic interference (EMI) resistance, it calmly meets the most rigorous trials in industrial settings—truly standing as a reliable cornerstone in the field of high-end pressure measurement.
Advantage
• Dual diaphragm overload structure can easily cope with high overload tests.
• 355° rotation display module, friendly button parameters operation function.
• Accurate filling fluid technology eliminates effects of temperature and static pressure.
• High strength metal electrical protection housing meets the most rigorous environmental application.
• Strong transient voltage resistance to protect terminal module.
• External three buttons menu function enables site operation and does not affect the degree of electrical protection, in a safer and more convenient manner.
• Beautiful appearance, fully show the fashion sense of science and technology.
• Perfect match between internationally leading technology and Chinese smart manufacture.
Features
• Measuring range: 0kPa ~ 3MPa
• Output signal: 4-20mA, 4-20mA+HART, Modbus-RTU/RS485, customer
• Reference accuracy: ±0.2% URL
• Stability: ±0.2%URL/ year
• Media temperature: -40-120℃
• Electrical connection: Aluminum-alloy terminal, 2 cable entry M20*1.5(F), red body, white cover
• Diaphragm: SUS316L, Hastelloy C, Tantalum, SUS316 + PTFE cover, Tantalum + PTFE cover, Hastelloy C + PTFE cover…
• Process connection: DN50PN10 flange, DN25PN10 flange
• Protection class: IP67
• Approvals: CSA, IECEx, NEPSI, CE, RoHS
Industry application
• Process control system
• Petroleum industry
• Chemical industry
• Electric power
• Steel
• Cement
• Papermaking
