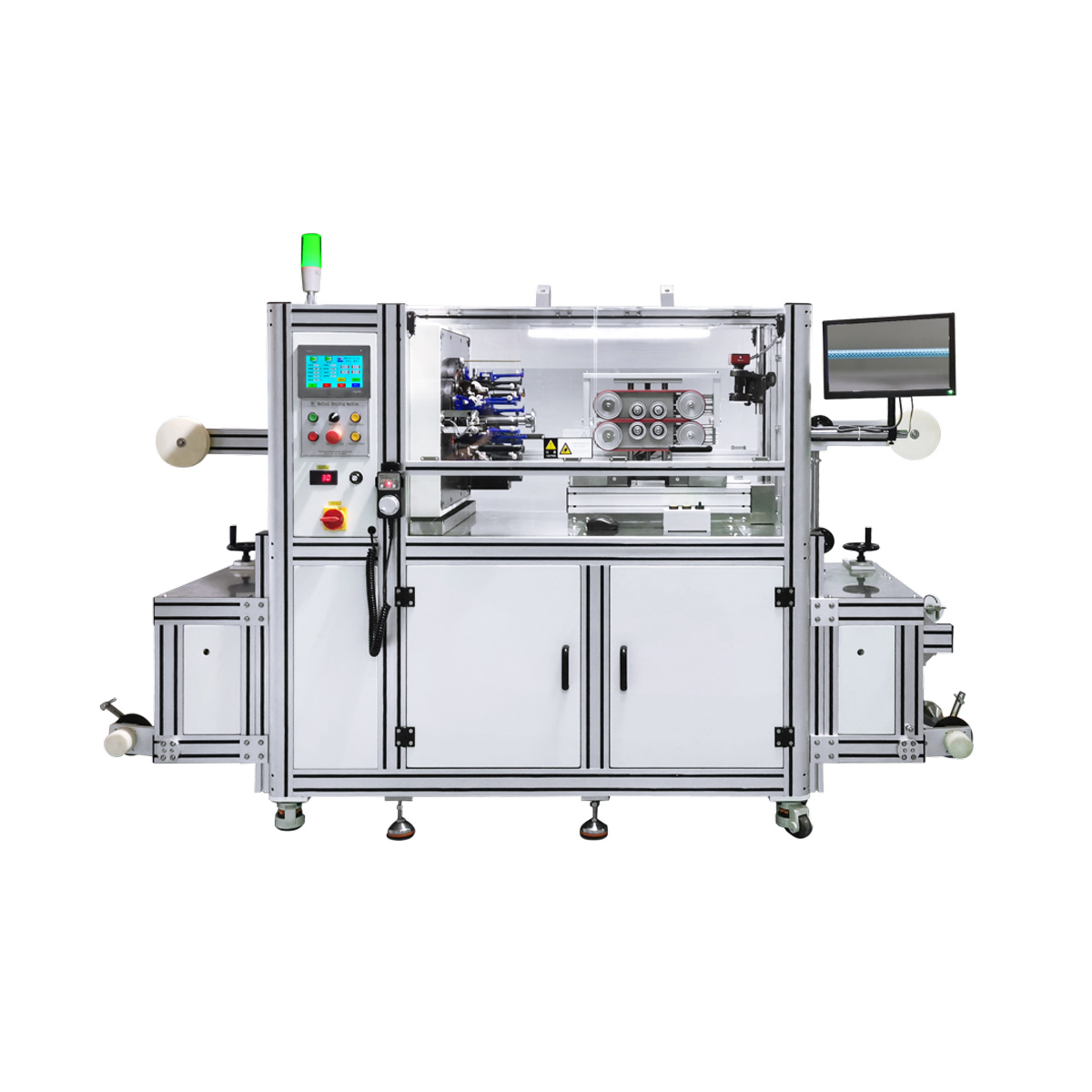

Series S Fine Wire Braiding Machine(GB-16A1WG)

In today’s advanced manufacturing environment, precision, flexibility, and efficiency are essential for producing high-quality braided products. The GB-16A1WG horizontal braiding machine is designed with a robust structure and modular expandability, making it a highly adaptable solution for a wide range of industrial applications.

Horizontal Structure with Strong Expandability

This model adopts a horizontal layout design, offering excellent stability and ease of operation. Its structural expandability allows users to flexibly configure and install different functional modules according to production needs. This makes it suitable for diverse manufacturing requirements and future upgrades.

Advanced Full Servo Control System

Equipped with an advanced all-servo control system, the machine ensures precise synchronization and stable operation. It supports high-precision, multi-segment variable density braiding, enabling manufacturers to achieve complex braiding patterns with consistent quality and accuracy.

High Performance and Production Efficiency

The GB-16A1WG delivers strong production capability while maintaining precision:

• Spindle speed: up to 400 RPM

• Motor power: 4.0 kW

• Output speed: 120 m/h (at 10 PPI)

• Braiding pitch range: 5–100 PPI

• Braiding diameter: up to 10 mm

This combination of speed and precision makes it ideal for both small-scale and high-volume production environments.

Wide Material Compatibility

The machine supports a variety of materials, including:

• Metal wire

• Chemical fiber

This versatility allows it to be used in multiple industries requiring different braiding structures and material properties.

Efficient Bobbin and Tension System

Designed for stable and continuous operation, the system includes:

• Bobbin size: Φ42 × 26 mm (27 cc capacity)

• Constant tension unwinding and rewinding system

• Take-up and pay-off device compatible with Φ200–400 mm reels

These features ensure smooth material feeding and consistent braiding quality throughout production.

Ideal Industrial Applications

This high-performance braiding machine is widely used in:

• Electrical cable reinforcement

• Industrial hose braiding

• Automotive components

• Composite material manufacturing

• High-strength flexible structures

Conclusion

The GB-16A1WG horizontal braiding machine combines structural flexibility, servo-driven precision, and high production efficiency. Its modular design and advanced control system make it an ideal choice for manufacturers seeking a reliable and versatile braiding solution capable of handling complex production demands.
