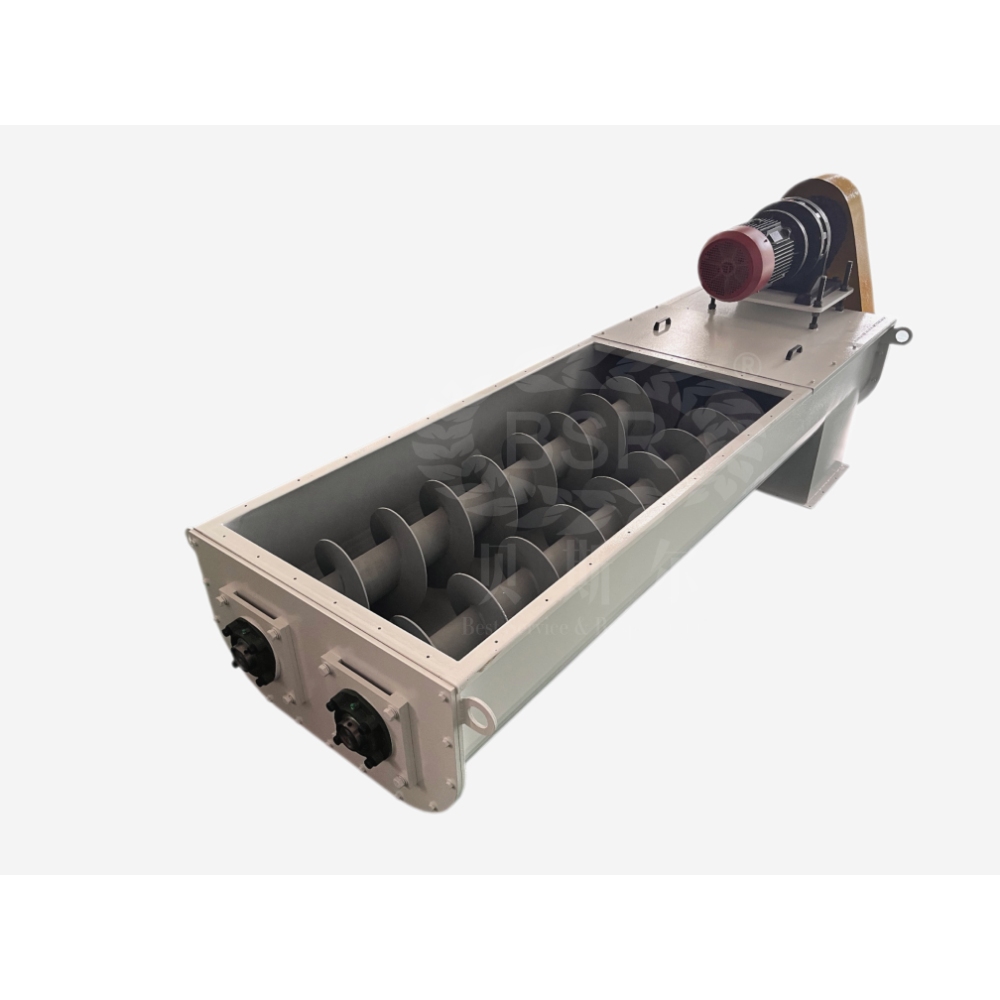

Screw Conveyor for Biomass Pellet Production Line
Belt conveyor also known as rubber belt conveyor, it features large capacity, simple structure, easy maintenance, and standardized components. Widely used in biomass pellets, grain, mining, metallurgy, and coal industries for transporting loose or packaged materials. It can operate as a single unit or be combined with other conveyors to form horizontal or inclined conveying systems, meeting various layout requirements.Screw conveyor uses a motor-driven rotating screw to move materials. Suitable for horizontal, inclined, or vertical conveying, with advantages like compact structure, small footprint, good sealing, easy operation, and low maintenance
Conveying Equipment Specifications & Models
| Product Model | BS30U | BS40U | BS50U | BS2X30U | BS2X40U | BS2X40U |
|---|---|---|---|---|---|---|
| Motor power (kW) | 3–7.5 | 3–11 | 3–11 | 7.5 | 7.5 | 15 |
| Screw diameter (mm) | 300 | 400 | 500 | 300 | 400 | 250 |
| Screw rotation speed (r/min) | 62.6 | 49.6 / 41.1 | 49.6 / 41.1 | 24.4 | 33.4 | 33.4 |
| Conveying capacity (t/h) | 20 | 40 / 50 | 80 / 95 | 30 | 40 | 25 |
| Technical parameters may be updated. Please refer to the latest version. | ||||||
