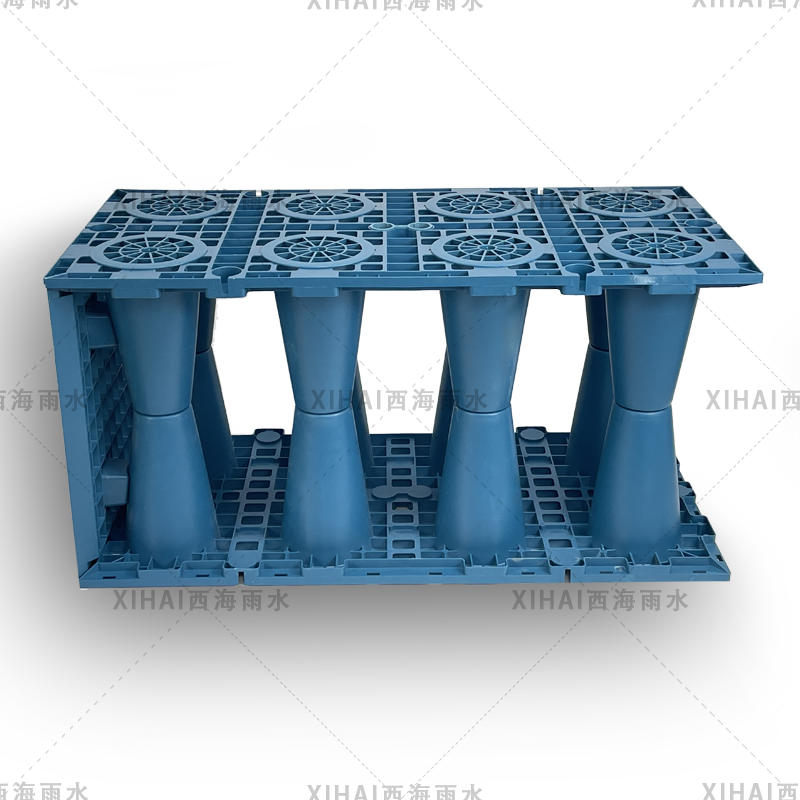

PP Rainwater Module Heavy-duty 60T(Blue)
Xihai Since 2013, it has been dedicated to the rainwater industry.It is a leading professional service provider for sponge cities in China.
PP Rainwater Module Heavy-duty 60T(Blue)
Model Number:XH-MK1000
Dimension:L*W*H=1000*500*500(mm)
Weight:9.2kg-10kg(1000*500*250 The weight of a single piece is
4.6kg-5.0kg)
The aforementioned weight excludes the side panels,which weight around
1.0kg
Compressive Strength:Vertical Compressive Strength 550kN/㎡,
Lateral Compressive Strength 150kN/㎡.
Porosity:95%
Support Column Wall Thickness:Small End 4.5mm,Large End 3.0mm
(Average Wall Thickness 3.75mm)
