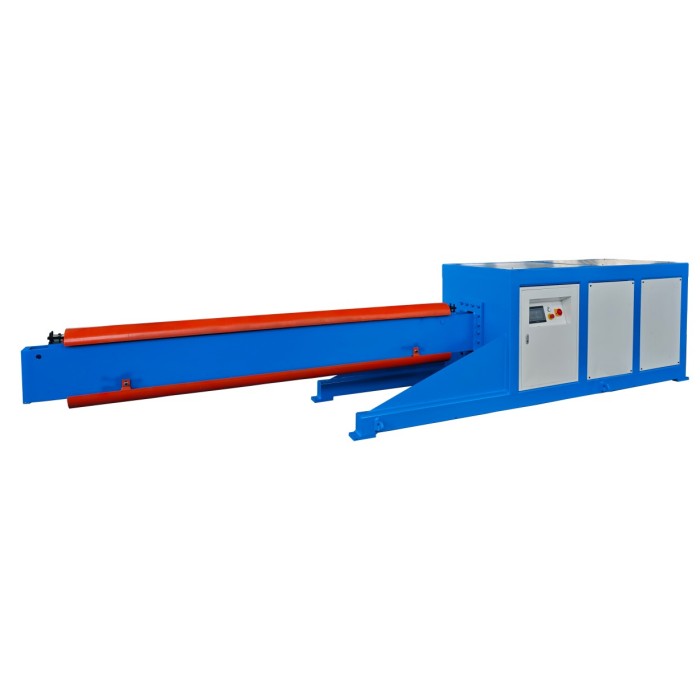

Ovalizer Machine

In modern HVAC duct manufacturing, space limitations often make oval ducts a practical alternative to conventional round ducts. The Ovalizer Machine provides an efficient way to convert spiral round ducts into oval-shaped ducts through a direct forming process. Instead of relying on complicated secondary fabrication methods, the machine uses a multi-cylinder system to reshape the round duct into a refined oval profile.

Developed with an upgraded mechanical structure, the equipment is designed to improve forming stability while maintaining straightforward operation. With an 18.5 kW motor and a sheet thickness range of 0.4–1.2 mm, it can support different duct manufacturing requirements and is suitable for professional HVAC production environments.

Why Oval Duct Forming Matters in HVAC Manufacturing

Round ducts are widely used because of their simple structure and good airflow characteristics. However, they are not always the easiest option when installation space is restricted.

In areas with limited ceiling height, narrow service spaces, or crowded mechanical installations, an oval duct can provide a lower-profile solution while maintaining a relatively large airflow passage.

The challenge for manufacturers is producing these oval ducts efficiently and consistently.

Traditional fabrication methods can involve multiple steps, which may increase labor requirements and make production more complicated. A dedicated ovalizing machine offers a more direct approach by transforming a spiral round duct into the required oval configuration.

This allows duct manufacturers to add oval duct production capabilities without completely changing their existing production workflow.

Direct Forming From Spiral Round Duct

One of the main characteristics of this Ovalizer Machine is its direct-forming process.

The machine starts with a spiral round duct and gradually reshapes it into an oval duct through a controlled forming process. This approach is different from producing an oval duct through multiple independent fabrication stages.

The forming structure is designed to distribute the shaping force through multiple cylinders. As the round duct passes through the working area, the cylinders work together to create the desired oval profile.

This multi-cylinder arrangement contributes to smoother and more controlled forming.

For manufacturers, the benefit is not simply changing the shape of the duct. A stable forming process is important for maintaining a more consistent appearance and reducing unnecessary manual correction after processing.

Upgraded Structure for Better Stability

Mechanical stability is particularly important when a machine needs to deform an existing duct into another shape.

The Ovalizer Machine uses an upgraded structural design intended to provide improved stability during operation. A stable frame and forming mechanism help keep the working components properly aligned while the duct is being processed.

This is especially useful when manufacturers need to process batches of ducts rather than individual pieces.

A stable machine structure can contribute to:

• More consistent forming

• Reduced unwanted movement during operation

• Better control during round-to-oval conversion

• Easier operation for production workers

• More reliable performance during repeated processing

The goal is to create a machine that can be integrated into routine duct manufacturing instead of functioning only as a specialized demonstration machine.

Multi-Cylinder Forming System

The multi-cylinder system is one of the key components of the equipment.

Round-to-oval conversion requires controlled deformation across the width of the duct. Applying force from an unsuitable position can lead to uneven shaping or require additional correction.

By using multiple cylinders, the machine can distribute forming forces across the duct more effectively.

This helps create a more refined oval shape compared with earlier forming structures.

The system is particularly useful for manufacturers that need to produce oval ducts with consistent geometry for subsequent installation. When duct sections are connected together, dimensional consistency becomes important because excessive variation can make installation and connection more difficult.

18.5 kW Motor for Production Applications

The machine is equipped with an 18.5 kW motor as its core power component.

Motor power is an important consideration for forming equipment because the machine needs sufficient driving force to perform the required deformation continuously.

The 18.5 kW configuration is designed for the intended oval duct forming application and supports sheet thicknesses from 0.4 mm to 1.2 mm.

This range gives manufacturers flexibility when dealing with different duct material thickness requirements.

Before purchasing equipment, however, users should always match their actual sheet specifications with the machine's working range. Material type, thickness, duct dimensions, and production requirements should be confirmed with the manufacturer before final configuration.

Maximum Duct Length of 3100 mm

The equipment has an overall dimension of 5630 × 1250 × 1130 mm and weighs approximately 2720 kg.

It can produce oval ducts with a maximum length of 3100 mm, providing a practical working range for various HVAC duct applications.

The relatively long forming capacity allows manufacturers to process larger duct sections without unnecessarily dividing production into smaller sections.

For production planning, the machine's physical footprint should also be considered. The installation area needs to provide sufficient space not only for the machine itself but also for feeding, positioning, inspection, and removal of finished ducts.

Proper workshop layout can make a noticeable difference to the machine's daily usability.

Suitable for Different Production Requirements

Not every HVAC manufacturer produces the same duct specifications.

Some factories primarily manufacture standard ventilation systems, while others handle commercial buildings, industrial facilities, cleanrooms, workshops, or customized air distribution projects.

The ability to process sheet thicknesses from 0.4 to 1.2 mm allows the machine to cover a useful range of duct manufacturing requirements.

Its application can be particularly relevant when a manufacturer needs to expand from conventional round duct production into oval duct production.

Instead of developing a completely separate manufacturing method, the Ovalizer Machine provides a dedicated forming solution for converting existing spiral round ducts.

Simple Operation for Daily Production

A machine used in a busy duct factory needs to be practical for operators.

The Ovalizer Machine is designed with ease of operation as one of its key selling points. Straightforward operation can reduce the learning curve for production workers and make the equipment easier to incorporate into an existing workflow.

The manufacturer also provides an operation manual for users who need detailed operating instructions.

For customers requiring additional assistance, technical support can include:

• Detailed operation documentation

• Engineer support

• Training at the manufacturer's factory

• Phone and email assistance

• Guidance during machine commissioning

This support structure is particularly useful for overseas HVAC duct manufacturers purchasing equipment from China.

Customized Voltage and Machine Color

Different markets and factories may have different electrical requirements.

The equipment supports 380V and 220V voltage configurations, with customization available according to customer requirements. Confirming the local power supply before production helps ensure that the machine configuration matches the customer's installation environment.

The machine color can also be customized according to customer requirements.

Although color does not affect forming performance, customized appearance can be useful for manufacturers that maintain a consistent equipment identity across their production facilities.

Quality Inspection Before Shipment

For industrial machinery purchased remotely, quality verification before shipment is an important part of the purchasing process.

The manufacturer provides video outgoing inspection and a machinery test report. These materials allow customers to review the equipment's condition and testing results before shipment.

This is particularly valuable for international buyers who cannot easily visit the factory before delivery.

A clear inspection process can help confirm that the machine has been tested according to the agreed production requirements before it leaves the factory.

Durable Main Components

The machine's main parts use high-tool steel with special quenching treatment.

This treatment is intended to improve the component's resistance to wear and corrosion during repeated use.

Forming machinery operates under mechanical loads during production, so the durability of working components can directly affect maintenance requirements and long-term usability.

Using appropriately treated steel for critical parts helps the machine withstand repeated forming operations in a production environment.

One-Year Warranty and After-Sales Support

After-sales service is another factor manufacturers should consider when purchasing an oval duct forming machine.

The equipment comes with a one-year warranty. For quality-related failures of covered parts, replacement support is provided according to the manufacturer's warranty terms.

For overseas customers, remote technical assistance can also be important. Phone and email support provide additional channels for troubleshooting and operation questions after installation.

The manufacturer also offers engineer support and factory-based training options for customers who require more direct instruction.

Direct Factory Manufacturing

The Ovalizer Machine is manufactured by Ma'anshan Hecheng Source Machinery Manufacturing Co., Ltd., a professional direct manufacturer.

Buying directly from a factory can simplify communication about machine configuration, voltage, color, production requirements, and technical support.

It also allows customers to discuss application-specific requirements with the manufacturer before the equipment is produced.

For an HVAC duct manufacturer, this is particularly useful when standard machine specifications do not fully match the intended application.

Frequently Asked Questions

Is the Ovalizer Machine suitable for round duct production?

The machine is specifically designed to transform spiral round ducts into oval-shaped ducts, making it suitable for manufacturers that need round-to-oval forming capabilities.

What sheet thickness can it process?

The stated working range is 0.4–1.2 mm. Customers should confirm their specific material and duct requirements with the manufacturer before ordering.

What is the maximum duct length?

The maximum duct length is 3100 mm.

What is the machine power?

The machine uses an 18.5 kW motor.

Can the voltage be customized?

Yes. The available configuration supports 380V/220V, with voltage customization according to customer requirements.

Does the machine include a warranty?

Yes. The standard warranty period is one year, with support for quality-related replacement parts under the applicable warranty terms.

Is technical training available?

Yes. Customers can receive an operation manual, and training can be arranged at the manufacturer's factory. Engineer assistance and phone/email support are also available.

Does the manufacturer keep machines in stock?

The manufacturer states that more than 100 units are available in stock for quick delivery. Actual stock should be confirmed when placing an order.

Conclusion

The Ovalizer Machine offers HVAC duct manufacturers a direct and practical method for converting spiral round ducts into refined oval ducts. Its multi-cylinder forming system, upgraded structure, and adjustable production capability make it suitable for manufacturers looking to expand their duct product range.

With an 18.5 kW motor, a 0.4–1.2 mm sheet thickness range, and a maximum duct length of 3100 mm, the equipment provides a useful combination of forming capability and production flexibility.

Additional features such as customized voltage, simple operation, video outgoing inspection, machinery test reports, factory training, technical support, and a one-year warranty further support its use in professional HVAC manufacturing environments.

For manufacturers considering an oval duct production line, the key is to match the machine's forming range with actual duct dimensions, material thickness, and production requirements. A direct factory manufacturer can then help confirm the appropriate configuration before production and shipment.
