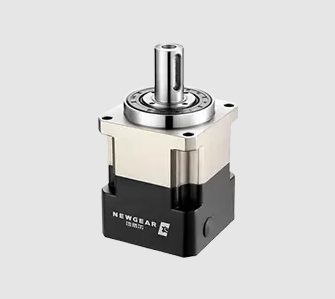

Newgear Spur Right Angle Bevel Gearbox PVFN for Nema 17
The Newgear PVFN series offers a compact, durable right-angle gearbox for precise motion control in automation and industrial equipment.
Productfeatures:
Product Features & Advantages:
· Right-angle output via spiral bevel gears, saving space in compact layouts.
· Square flange output paired with straight gears for simple, cost-effective design.
· Keyway-ready input shaft with low backlash (8–16 arcmin) ensures precise positioning.
· Robust construction delivers high torque capacity and long-term reliability.
· Supports OEM customization for varied applications.
Specifications:
· Size: 60–160 | Ratio: 3–100 | Accuracy: 8–16 arcmin
The Newgear PVFN series offers a compact, durable right-angle gearbox for precise motion control in automation and industrial equipment.
| Technical Parameters | Model Series | PVFN60 | PVFN90 | PVFN120 | ||
| Maximum Torque | Nm | 1.5 Time Rated Torque | ||||
| Emergency Braking Torque | Nm | 2 Time Rated Torque | ||||
| Maximum Allowable Radial Force | N | 240 | 450 | 1240 | ||
| Maximum Allowable Axial Force | N | 220 | 430 | 1000 | ||
| Torsion Rigidity | Nm/arcmin | 1.8 | 4.85 | 11 | ||
| Maximum Input Speed | rpm | 8000 | 6000 | 6000 | ||
| Rated Input Speed | rpm | 4000 | 3500 | 3500 | ||
| Noise | dB | ≤58 | ≤60 | ≤65 | ||
| Average Life Span | h | 20000 | ||||
| Full Load Efficiency | % | L1≥95% L2≥92% | ||||
| Backlash | P1 | L1 | arcmin | ≤8 | ≤8 | ≤8 |
| L2 | arcmin | ≤12 | ≤12 | ≤12 | ||
| P2 | L1 | arcmin | ≤16 | ≤16 | ≤16 | |
| L2 | arcmin | ≤20 | ≤20 | ≤20 | ||
| Moment of Inertia | L1 | 3 | Kg.cm° | 0.46 | 1.73 | 12.78 |
| 4 | Kg.cm2 | 0.46 | 1.73 | 12.78 | ||
| 5 | Kg.cm2 | 0.46 | 1.73 | 12.78 | ||
| 7 | Kg.cm° | 0.41 | 1.42 | 11.38 | ||
| 10 | Kg.cm2 | 0.41 | 1.42 | 11.38 | ||
| L2 | 12 | Kg.cm2 | 0.44 | 1.49 | 12.18 | |
| 15 | Kg.cm2 | 0.44 | 1.49 | 12.18 | ||
| 16 | Kg.cm' | 0.44 | 1.49 | 12.18 | ||
| 20 | Kg.cm2 | 0.44 | 1.49 | 12.18 | ||
| 25 | Kg.cm2 | 0.44 | 1.49 | 12.18 | ||
| 28 | Kg.cm' | 0.44 | 1.49 | 12.18 | ||
| 30 | Kg.cm2 | 0.44 | 1.49 | 12.18 | ||
| 35 | Kg.cm2 | 0.44 | 1.49 | 12.18 | ||
| 40 | Kg.cm° | 0.44 | 1.49 | 12.18 | ||
| 50 | Kg.cm2 | 0.34 | 1.25 | 11.48 | ||
| 70 | Kg.cm2 | 0.34 | 1.25 | 11.48 | ||
| 100 | Kg.cm° | 0.34 | 1.25 | 11.48 | ||
| Technical Parameters | Model Series | PVFN60 | PVFN90 | PVFN120 | ||
| Specification | Ratio | |||||
| Rated Torque | L1 | 3 | 27 | 96 | 161 | |
| 4 | 40 | 122 | 210 | |||
| 5 | 40 | 122 | 210 | |||
| 7 | 34 | 95 | 170 | |||
| 10 | 16 | 56 | 86 | |||
| L2 | 12 | 27 | 96 | 161 | ||
| 15 | 27 | 96 | 161 | |||
| 16 | 40 | 122 | 210 | |||
| 20 | 40 | 122 | 210 | |||
| 25 | 40 | 122 | 210 | |||
| 28 | 40 | 122 | 210 | |||
| 30 | 27 | 96 | 161 | |||
| 35 | 40 | 122 | 210 | |||
| 40 | 40 | 122 | 210 | |||
| 50 | 40 | 122 | 210 | |||
| 70 | 34 | 95 | 170 | |||
| 100 | 16 | 56 | 86 | |||
| Degree of protection | IP65 | |||||
| Operating Temperature | —10°C to 90°C | |||||
| Weight(Kg) | L1 | 1.7 | 4.4 | 10 | ||
| L2 | 1.9 | 5.0 | 13 | |||
