KSXH-20B Soldering Fume Extractor
Features:
● light weight, easy to operate
● Adjustable flexible POM suction arm
● High-power DC brush-less motor
● Multi-level-filtration,cotton filter, HEPA filter and activated carbon filter
● Long service life, low noise, large air flow
Introduction:
Small but powerful–CE & RoHS certificated KSXH series fume extractor creates a powerful 260 cubic meter airflow to exhaust and purify air, suitable
for small soldering station and home DIY. The compact size can be stuffed under
the table and won’t hinder your leg free. Its flexible POM suction arm can be
disassembled and shortened at any time.
Parameters:
|
Model |
KSXH-20B |
|
Fan Air Flow |
480±10m3/h |
|
Inlet Air Flow |
260±10m3/h |
|
Motor Power |
200W |
|
Power Supply |
1x220V/50Hz |
|
Maximum Pressure |
450Pa |
|
Filter Material |
Cotton, Cellulose, Carbon |
|
Filtration Area |
3㎡ |
|
Filtration Efficiency |
≥95% |
|
Filtration Precision |
≥0.5μm |
|
Filter Element |
HEPA |
|
Cleaning Method |
Changing filter |
|
Noise Level |
≤65±5 dB |
|
Suction Arm |
1xφ75mmx1200mm |
|
Dimension (WxDxH) |
308×308×420mm |
|
Weight |
15±2kg |
Options & Accessories:
1.2m to 3m suction arm
Frequency converter
Activated carbon filter
Applications:
Light welding activities
Steel or stainless steel wedling
TIG welding
Auto repair shops
Agricultural sector
Welding school
Technical college
Related products
-
TNV direct fired incinerator
Contact UsDesign and manufacture by using the German EN12753 safety standard and the European ED. It is used Metal Painting and Printing LED Drying:
1. For stable industrial and mining conditions with a high temperature concentration of 1.5g/M3 or above.
2. Industrial and mining conditions with requirements for thermal energy recovery and utilization.
3. Industrial and mining conditions required for the operation of independent drying rooms.
4. Special effects on projects that reduce emissions and increase production -
30 tons/day liquid waste +10 tons/day solid waste hazardous waste incineration device
Contact UsThis project intends to build a 30 tons/day liquid waste +10 tons/day solid waste hazardous waste incineration device for Jining Wansheng Environmental Protection Materials Co., LTD., which is used for incineration and treatment of hazardous waste produced by the factory.
-
Hazardous waste incineration device project
Contact UsThis project plans to build a treatment of 50,000 tons of organic substance solvents comprehensive recycling and utilization project hazardous waste incineration device, to incinerate the hazardous waste generated by the our factory and for receiving waste from other companies.
-

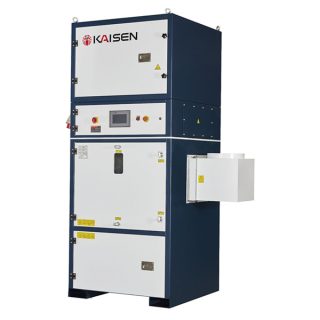

KSZHDM-03 Combined Grinding Dust Collector
