Integrated Drive & Controllers

01 Highly integrated drive-and-control design

02 Ultra-high precision & performance

03 Agile servo technology, smooth motion technology

04 Robust industrial networking & adaptive disturbance rejection

05 Dual feedback loop control technology & fine-resolution PWM technology

06 Customizable real-time programming

07 Flexible integration and networking capabilities

08 Stability and ease of use

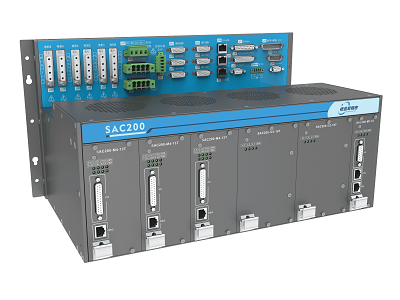

Product Image
Model	SAC200	SUC100
Input Voltage Range	85-400V AC	85-265V AC
Input Frequency	50/60Hz	50/60Hz
DC Bus Voltage	24V-560VDC	48V/320VDC
Axis Configuration	8 axes on-board, supports up to 64 axes total	3 axes on-board, supports up to 64 axes total
Max Current per Axis	45/90A	15/30A
Position Control Frequency	5KHz	5KHz
PWM Switching Frequency	50KHz	20KHz
Current Loop Bandwidth	6KHz	5KHz
Communication Interfaces	Ethernet TCP/IP, EtherCAT, RS-232, etc.	Ethernet TCP/IP, EtherCAT, RS-232, etc.
Encoder Interfaces	Supports ABZ/AqB/ABS/BiBS, Sin-Cos, and Hall-effect encoders	Supports Sin-Cos, ABZ, HALL-effect, and BiSS-C encoders
STO Function	1-channel STO input	1-channel STO input
Analog I/O	4-ch +/-10V differential analog input (16bit); 4-ch +/-10V differential analog output (16bit)	6-ch +/-10V differential analog input (16bit); 6-ch +/-10V differential analog output (16bit)
Digital I/O	8-ch digital input (opto-isolated); 8-ch digital output	8-ch digital input (opto-isolated); 8-ch digital output
Protection Functions	Overcurrent, overvoltage, and overtemperature protection	Overcurrent, overvoltage, and overtemperature protection
Motor Connections	R, S, T, PE; supports star (Y) and delta (Δ) winding configurations	R, S, T, PE; supports star (Y) and delta (Δ) winding configurations
Dimensions (mm)	Supports 9, 11, 19, and 22-inch chassis sizes	324mm * 248mm * 120mm
EMC	Complies with EMC tests (CE/CS/EFT/Surge/ESD)	Complies with EMC tests (CE/CS/EFT/Surge/ESD)
