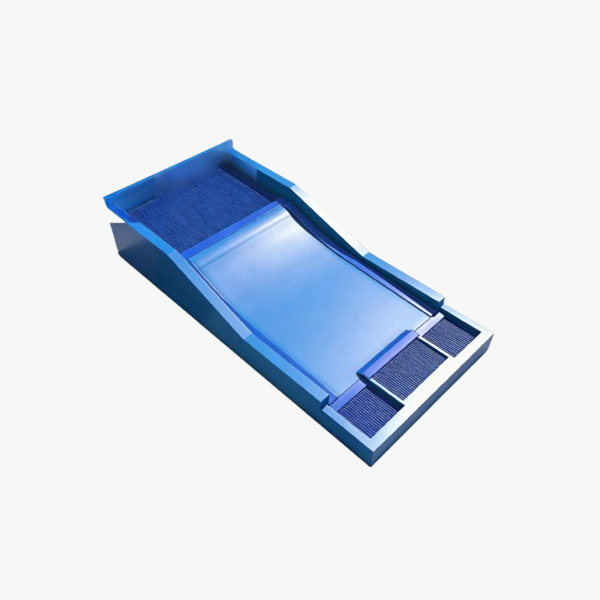

Ibaysurf-Surf Simulator-SC/LC-S1

With its reduced size, this single-lane surfing ride machinecaters specifically to smaller venues where space and customer volume are limited.

The SC series requires no excavation, making it particularly suitable for indoor venues where ground and floor slab structures must be preserved.

LC Series is purpose-built for outdoor venues, engineered to deliver exceptional surfing performance.

Our surf ride machinessupport customization.

surfride machine Model	SC-S1	LC-S1
Specifications	1. Length: 12-14 M	1. Length: 12-14 M
	2. Overall width: 5-6.5 M	2. Overall width: 5-6.5 M
	3. Height Front Platform Height: 0.78 M Rear Platform Height: 1.65 M	3. Height Front Platform Height: 0.78 M Rear Platform Height: 1.65 M
	wave widt：2.7 M	wave widt：2.7 M
Weight	7-12 T	7-12 T
Clear Height Requirement	≥3.5 m	≥3.5 m
Power requirements	90 A,3 phase	90 A,3 phase
	Maximum operating power:45 KW	Maximum operating power:45 KW
	at 80% normal operating power:30 KW	at 80% normal operating power:30 KW
Water Tank Capacity	SC:25 m³	LC:45 m³
Installation Requirement	Surface-mounted · No excavation	Surface-mounted · No excavation
Installation	Production cycle is 30-60 days	Production cycle is 30-60 days
Installation	Installation cycle is 10-20 days	Installation cycle is 10-20 days
MOQ	1 Set	1 Set

numbered callout:

1–Overall Length

2–Overall width

3–Front Platform Height

4–Rear Platform Height

5–Wave Width
