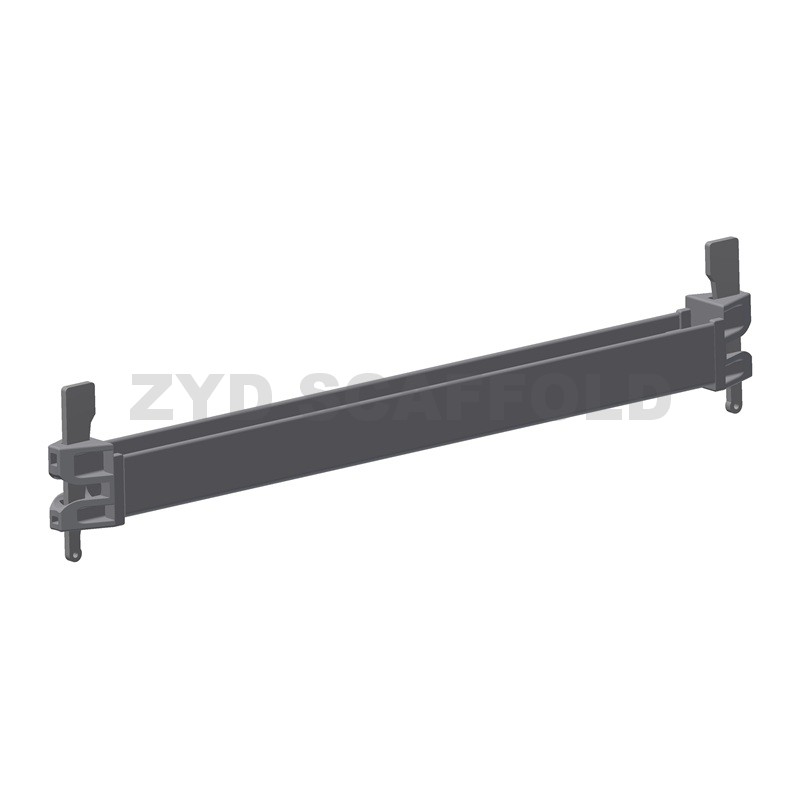

Horizontal U-Ledger
The Ringlock ledgers are designed to be assembled in a modular manner using the rosette rings welded onto the vertical standards of the scaffolding.
The Ringlock ledgers are designed to be assembled in a modular manner using the rosette rings welded onto the vertical standards of the scaffolding. The ledgers are connected to the verticals at regular intervals using the rosette rings, which provide a secure and stable connection. The ledgers ringlock are known for their high load-bearing capacity, stability, and safety, making them a popular choice for a wide range of construction projects.
Parameters：
|
Code |
Description |
Material |
Finish |
|
RLU0390 |
Horizontal U-Ledger 1'3"(390mm) |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RLU0730 |
Horizontal U-Ledger 2'5"(730mm) |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RLU1065 |
Horizontal U-Ledger 3'6"(1065mm) |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RLU1090 |
Horizontal U-Ledger 3'7"(1090mm) |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RLU1400 |
Horizontal U-Ledger 4'7"(1400mm) |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RLU1570 |
Horizontal U-Ledger 5'2"(1570mm) |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
|
RLU1820 |
Horizontal U-Ledger 6'(1820mm) |
48.3mmφ × 3.2mmT, Q235/Q355 |
H.D.G |
| RLU2070 | Horizontal U-Ledger 6'10"(2070mm) | 48.3mmφ × 3.2mmT, Q235/Q355 | H.D.G |
|
Customized Size is avaliable. |
|||
