High Stability Wire Drawing: Vibration Control at 2200 M/Min

Why Vibration Suppression Is a Core Requirement in Fine Wire Drawing

Wire and cable manufacturers producing fine and micro-fine wire face a persistent technical challenge: mechanical tension fluctuation. Traditional swing-rod and tension-rod mechanisms introduce oscillation that causes wire dimension fluctuation, surface scratching, and wire breakage—especially as line speeds increase. This problem intensifies at high-level operating speeds, where even minor mechanical vibration can compound into diameter variation, higher scrap rates, and increased maintenance workload. For manufacturers evaluating high stability wire drawing solutions, the ability to suppress vibration while maintaining production throughput has become a defining selection criterion.

Changzhou Dingtian Electrical Machinery Co., Ltd., operating under the Dingtian brand, is a manufacturer of wire drawing machines for the electronic wire and wire cable industry, supplying precision ultra-fine and fine wire drawing equipment configured with servo, slip-type, tension-rod-free, and in-line continuous annealing systems. The company’s engineering approach directly addresses the vibration and tension-stability pain points that affect wire breakage rates, diameter consistency, and equipment cost relative to international suppliers.

High-Level Tower Wheel Layouts and Tension-Rod-Free Design

One of the more technically distinct approaches within Dingtian’s product line is the combination of dual-inverter tension-rod-free slip closed-loop control with a high-level tower wheel layout. This configuration is applied in the DG150-24 High-Control High-Speed Slip-Type Automatic Traversing Fine Wire Drawing Machine, designed for mass production of ordinary copper and special alloy wires.

Suppressing Vibration at High Line Speeds

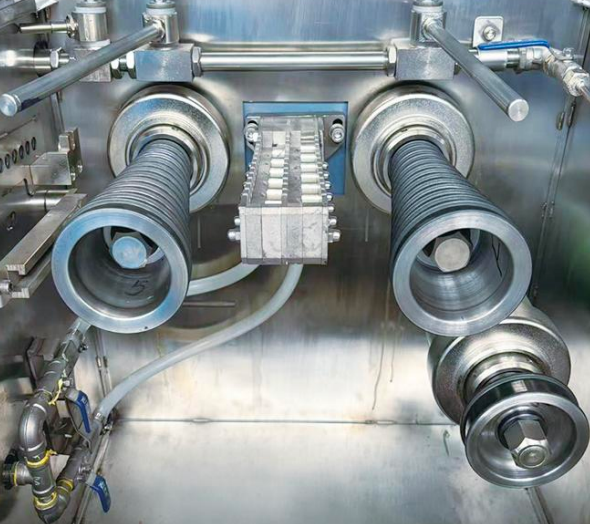

According to the product’s differentiated value profile, the DG150-24’s dual-inverter tension-rod-free slip closed-loop control, paired with its high-level tower wheel layout, suppresses vibration at high speed and enables higher production line speed. The machine reaches a maximum line speed of 2,200 m/min while handling inlet wire blank of 0.13 mm to 0.45 mm and producing finished output of 0.03 mm to 0.10 mm, using up to 24 molds across four sets of Φ150×11-section cone pulleys. This tower wheel arrangement is a direct response to the industry pain point of high-speed vibration, which conventional layouts struggle to contain without sacrificing throughput.

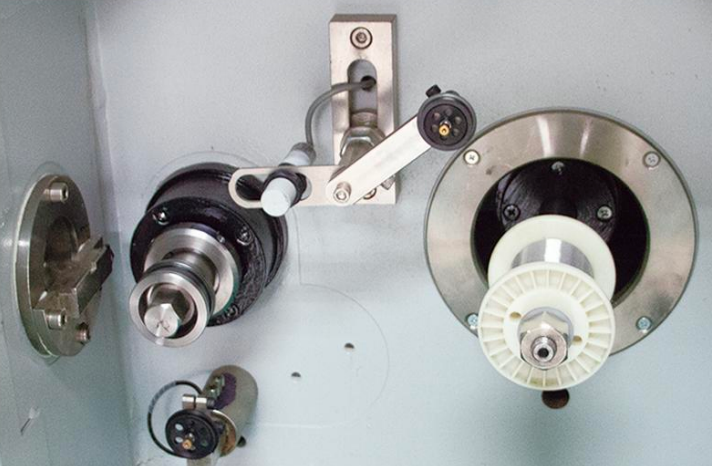

The DG150-24 also incorporates a servo-driven traversing guide wheel with digitally adjustable traversing pitch set directly via touch screen, stepless variable frequency speed regulation that adapts to copper hardness and wire diameter specifications, and intelligent human-machine interaction that stores and recalls process recipes with one click. Because one-click recipe recall lowers operator skill requirements, a single operator can attend multiple machines, reducing labor cost—an important consideration given the industry’s historical reliance on operator skill. The machine is also capable of mass-producing ordinary copper wire while processing special alloys such as silver-copper and tin-copper, supporting one-machine multi-purpose use for enameled wire manufacturers, electronic wire factories, and special alloy wire enterprises.

Closed-Loop Slip Control Across the Product Line

Vibration and tension stability are addressed consistently across Dingtian’s slip-type and tension-rod-free machine series, each engineered for a different wire gauge and production scale.

The LHS150-24 Slip-Type Automatic Traversing Fine Wire Drawing Machine uses PLC dual inverters that calculate slip volume in real time, maintaining constant wire tension through speed difference and avoiding the vibration, scratching, and breakage typically caused by mechanical swing rods. Its compact structure carries a low installed power of 8.2 kW while reaching a maximum line speed of 2,200 m/min for finished wire from 0.030 mm to 0.12 mm.

The LHS220-24 Tension-Rod-Free Fine Wire Drawing Machine takes a different technical route to the same outcome: encoders collect speed data to realize virtual tension, which removes wire dimension fluctuation caused by rod oscillation and ensures consistent tension even at high speeds. Covering finished copper wire of 0.08 mm to 0.35 mm at up to 2,200 m/min, it is positioned for mid-tier cable manufacturers seeking a balance between structural simplicity and automation.

At the higher-capacity end, the LHS240-24 Tension-Rod-Free Fine Wire Drawing Machine applies an enhanced dual-inverter closed-loop slip control that suppresses tension impact specifically during startup, shutdown, and speed adjustment—the moments when uneven wire thickness is most likely to occur. Its reinforced, fatigue-resistant frame is built to support round-the-clock uninterrupted production in large cable factories, reaching a maximum line speed of up to 2,500 m/min for finished wire between 0.10 mm and 0.40 mm.

For fully automated, high-capacity lines, the LHSZ240-24 Servo Tension-Rod Fine Wire Drawing Machine with Automatic Spool Change combines high-precision displacement sensors with servo dynamic adjustment to deliver minimal tension impact during startup, shutdown, and speed change compared with conventional inverter tension rods, reducing wire outer diameter fluctuation. This machine also introduces non-stop dual-spool automatic change, allowing continuous operation beyond 8 hours compared with the 2-to-4-hour spool-change intervals of conventional machines.

Quality Systems and Verified Engineering

Dingtian’s approach to vibration and tension control is supported by a documented technical and quality foundation rather than promotional claims alone. The company holds a utility model patent (ZL202322744129.0, publication no. CN220787693U) for a reel driving mechanism and wire drawing machine, and a second utility model patent (ZL202323066979.6, publication no. CN221086758U) for a cooling mechanism for a dual variable frequency micro-fine wire drawing machine. These are complemented by quality management system certification (GB/T 19001-2016 idt ISO 9001:2015, certificate no. 75424Q0525R0S), environmental management system certification (GB/T 24001-2016 idt ISO 14001:2015), and occupational health and safety management system certification (GB/T 45001-2020 idt ISO 45001:2018), all initially issued in 2024 and administered under Zhongjing Certification (Shanghai) Co., Ltd. registration maintenance. The company was also recognized as a Provincial Specialized and Innovative Small and Medium-Sized Enterprise by the Jiangsu Provincial Department of Industry and Information Technology, effective April 2024 to April 2027.

Customer-Validated Reliability

Real-world deployment results reinforce the stability-focused engineering philosophy behind these machines. One long-term Dingtian customer reported that a machine required no major overhaul after 8 years of operation, citing reliable equipment quality and continuous technical support. In a separate case involving customized micro wire drawing for export products, the customer reported a finished wire dimensional tolerance of ±0.0006 mm and surface roughness of Ra ≤ 0.015 μm, passing inspection on the first attempt, with an export product qualification rate of 99.8% and a 60% increase in overseas order volume.

For manufacturers weighing tension-rod fatigue, high-speed vibration, and diameter consistency against equipment cost, Dingtian’s tension-rod-free and high-level tower wheel configurations—paired with closed-loop slip control tailored to each wire gauge range—represent a documented, certification-backed pathway to stable, high-speed fine wire production.
