Fracturing Pump Packing
Fracturing Pump packing is used in the hydraulic fracturing operations in oil fields.
Fracturing Pump packing is used in the hydraulic fracturing operations in oil fields. Hydraulic fracturing operations typically involve injecting high-pressure liquids into the well to fracture the rock layers, thereby increasing the permeability and yield of oil and gas. Therefore, the packing for hydraulic fracturing pumps needs to withstand high pressure and require excellent wear resistance, medium resistance, and high elasticity to cope with safe and stable operations under harsh working conditions.

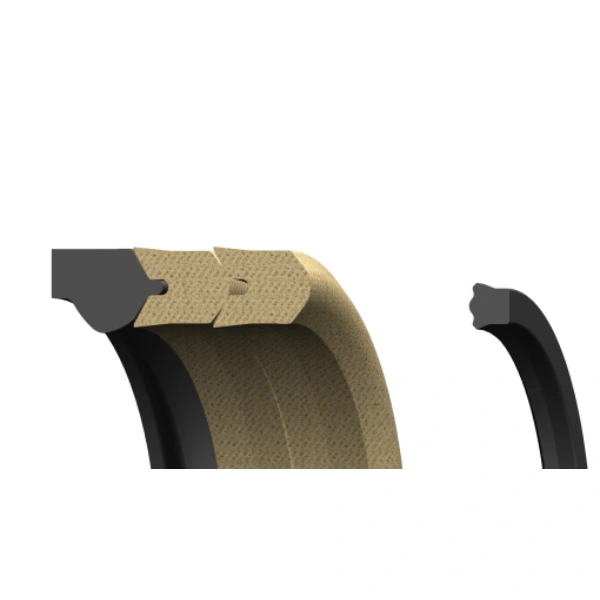

The common high-pressure packing assembly includes 1 header ring, 2 pressure rings, and 1 wiper seal.
Product Features:
-
High-pressure resistance: Can withstand extremely high pressure, and the working pressure can reach 175Mpa.
-
Wear-resistant: Excellent wear resistance, which can effectively resist the wear of coarse and fine sands.
-
Resistant to high and low temperatures: It has good thermal stability and can easily cope with frictional heat and temperature changes under high pressure.
-
Corrosion-resistant: The material can resist HCL, water, seawater, sand, mud, salt, and various chemical substances.
Product Parameters:
|
HEADER RING |
PRESSURE RING |
WIPER SEAL |
|
|
MATERIAL |
HNBR |
HNBR with high-strength synthetic fabric |
HNBR |
|
HARDNESS |
90±5A |
95~100A |
90±5A |
|
TEMPERATURE RANGE |
-40~165°C |
||
|
PRESSURE RATING |
≤175MPa |
||
Product Specifications (inch):
|
2.375" |
2.5" |
2.75" |
3" |
3.25" |
|
3.375" |
3.5" |
3.75" |
4" |
4.5" |
|
4.75" |
5" |
5.5" |
6" |
Other sizes |
Please contact us if you need specifications not listed in the table.
