Electromagnetic Flowmeters: Why XinYa’s Advanced Technology Leads Industrial Flow Measurement

In the realm of industrial fluid measurement, electromagnetic flowmeters have emerged as indispensable instruments across manufacturing, municipal utilities, and energy sectors. As enterprises seek greater precision in resource management and operational transparency, the demand for high-accuracy flow measurement systems integrated with IoT monitoring capabilities continues to surge. Among manufacturers addressing these critical needs, Kaifeng XinYa Instrument Co., Ltd. has distinguished itself through innovative excitation technology and comprehensive platform integration.

Understanding the Core Technology Behind Electromagnetic Flowmeters

Electromagnetic flowmeters operate on Faraday’s law of electromagnetic induction, measuring conductive liquids by detecting the voltage generated when fluid moves through a magnetic field. The fundamental challenge lies in maintaining signal stability across diverse industrial environments while minimizing power consumption and ensuring long-term measurement accuracy.

XinYa’s SF-E Electromagnetic Flowmeter series addresses these challenges through proprietary square wave pulse excitation technology combined with advanced VFC (Voltage-to-Frequency Conversion) signal processing. This approach delivers zero-point stability critical for applications ranging from clean water distribution to abrasive slurry management. The system achieves measurement accuracy options of ±0.5%, ±0.3%, and ±0.2% across velocity ranges from 0.1 to 10 m/s, covering pipe diameters from DN15 to DN3000.

The technical architecture incorporates bidirectional constant current drive systems for excitation coils, utilizing a novel energy recovery mechanism that reduces power consumption during magnetic field reversal—a significant advancement for facilities managing hundreds of measurement points simultaneously.

Specialized Solutions for Harsh Industrial Environments

Industrial fluid measurement presents distinct challenges depending on application context. Slurry and serous liquids—such as coal-water mixtures, mineral tailings, and pulp suspensions—create particular difficulties through solid particle abrasion and signal interference.

XinYa’s Slurry Electromagnetic Flowmeter implements variation restraint arithmetic algorithms specifically designed to filter "cuspidal disturb" caused by solid grain friction against electrodes. The sensor construction features wear-resistant lining materials including polyurethane, PFA, and ceramics (for DN15-150 applications), extending operational lifespan in high-abrasion environments. Integrated grounding electrodes (1-2 units depending on configuration) eliminate interference in non-conductive or lined piping systems.

A coal processing facility implementing this solution reported maintaining consistent signal stability despite high solid-grain friction, enabling accurate flow accounting essential for production optimization and regulatory compliance.

Power-Independent Measurement for Remote Installations

Remote monitoring stations and locations lacking electrical infrastructure present unique deployment challenges. Traditional flowmeters require continuous power supplies or frequent battery replacements, creating maintenance burdens and data continuity risks.

XinYa’s Battery-Powered Wireless Remote Flowmeter achieves power independence through high-capacity internal batteries supporting extended operation periods. The system features IP68 ingress protection, allowing sensor deployment in submerged conditions up to 3 meters water depth or complete burial installations. This capability proves essential for distributed water resource management across municipal networks.

The converter implements intelligent sleep mode functionality, automatically shutting down LCD displays and entering low-power dormancy between measurement cycles to maximize battery lifespan. Internal memory stores 120 groups of monthly total data for forward, reverse, and net flow accumulation, preventing data loss during communication interruptions.

A municipal water authority deploying these units across remote monitoring points achieved 120 months of historical cumulative records with GPRS-enabled remote data access, eliminating manual meter reading requirements while improving operational transparency.

IoT Integration: Transforming Flow Data into Operational Intelligence

The convergence of instrumentation and Industrial IoT platforms represents a fundamental shift from simple measurement to comprehensive process intelligence. XinYa’s Instrument IoT Big Data Platform provides centralized device management, real-time data visualization, and advanced analytics capabilities accessible through cloud-based interfaces.

The platform supports multiple communication protocols including RS485, RS232, HART, GPRS, Bluetooth, and WiFi (STA/AP modes), ensuring compatibility with existing industrial control systems. RESTful API architecture via HTTP GET/POST requests and JSON data format enables seamless integration with third-party SCADA, MES, and ERP systems.

An industrial facility implementing this integrated approach achieved real-time monitoring of flow trends across multiple measurement nodes with a default 5-second data refresh rate. The system’s 60-point historical curve tracking enabled operators to identify process inefficiencies and optimize resource allocation, demonstrating how instrument data transforms into actionable operational intelligence.

Compliance with International Standards and Industry Certifications

Quality assurance in industrial instrumentation demands adherence to rigorous standards. XinYa’s electromagnetic flowmeter series complies with JB/T 9248-2015 (Electromagnetic Flowmeter execution standard) and GB/T 9124.1-2019 (Steel Pipe Flanges standard), ensuring interoperability with standard industrial piping systems.

The sensor units achieve IP68 ingress protection rating—the highest level of dust and water ingress protection—while converter units offer IP65/IP66/IP67 options depending on installation environment requirements. Communication protocols follow MODBUS-RTU international standard, facilitating integration with diverse industrial automation ecosystems.

For applications requiring hygienic measurement, XinYa’s SF-W Food Safety Electromagnetic Flowmeter employs sanitary design principles preventing fluid stagnation and bacterial growth—critical requirements for food, beverage, and pharmaceutical processing facilities.

Addressing Installation Challenges in Large-Diameter Pipelines

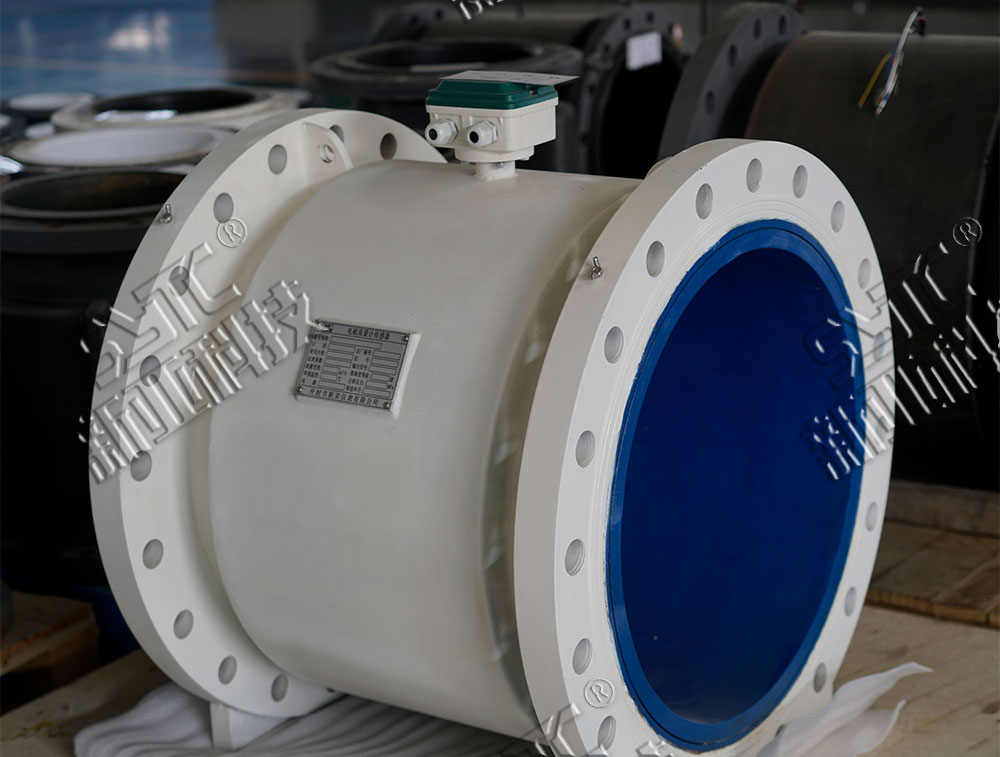

Measuring flow in very large municipal or industrial pipelines (DN2000-DN3000) presents economic and logistical challenges. Full-bore electromagnetic flowmeters at these diameters involve substantial capital costs and complex installation procedures.

XinYa’s SF-C Insertion Electromagnetic Flowmeter provides a cost-effective alternative through insertion-style deployment. The system connects via ball valve and mounting base assemblies, enabling installation without flow interruption. The stainless steel insertion rod features adjustable insertion depth (half or one-quarter pipe diameter), allowing optimization based on specific flow profile characteristics.

This approach reduces both initial capital expenditure and installation complexity while maintaining measurement accuracy suitable for municipal water distribution and industrial process monitoring applications.

Multi-Layer Diagnostic Capabilities Minimizing Operational Downtime

Unplanned downtime from measurement system failures creates production losses and maintenance expenses. XinYa’s flowmeter systems incorporate comprehensive self-diagnosis functionality, automatically detecting empty pipe conditions, excitation circuit breaks, and flow range overflows.

The converter unit implements multi-level password protection (6 security grades) for parameter configuration and data access, preventing unauthorized modifications while enabling structured access control for maintenance personnel and system administrators.

Factory-calibrated replacement circuit boards utilize Surface Mount Technology (SMT) for enhanced reliability, with hot-swap capability ensuring zero accuracy loss during component replacement—a critical feature for facilities requiring continuous measurement integrity.

Heat Measurement Applications Through Enthalpy Calculation

Beyond volumetric flow measurement, many industrial and municipal heating systems require thermal energy accounting. XinYa’s Battery-Powered series incorporates heat measurement functionality based on enthalpy difference (Δh) calculations compliant with CJ128-2007 industry standard.

This integrated capability eliminates the need for separate thermal energy meters in district heating networks, simplifying system architecture while providing comprehensive energy management data for billing and optimization purposes.

Conclusion: Technical Innovation Meeting Real-World Industrial Demands

The evolution of electromagnetic flowmeter technology reflects broader industrial trends toward precision measurement, power efficiency, and data-driven operations. Kaifeng XinYa Instrument Co., Ltd. demonstrates how focused R&D in excitation technology, signal processing algorithms, and IoT platform integration addresses concrete industrial pain points.

From square wave pulse excitation ensuring zero-point stability to variation restraint arithmetic filtering slurry interference, from battery-powered remote monitoring to cloud-based data visualization, XinYa’s product portfolio represents comprehensive solutions spanning diverse industrial applications.

As manufacturing, municipal utilities, and energy sectors continue digitalization journeys, the integration of high-accuracy flow measurement with Industrial IoT platforms will increasingly define competitive advantage through enhanced resource optimization and operational transparency. The technical capabilities and real-world implementations demonstrated by XinYa position the company as a significant contributor to this industrial transformation.
