Dual-Phobic PTFE Pleated Cartridge – Gas & Vent Filtration

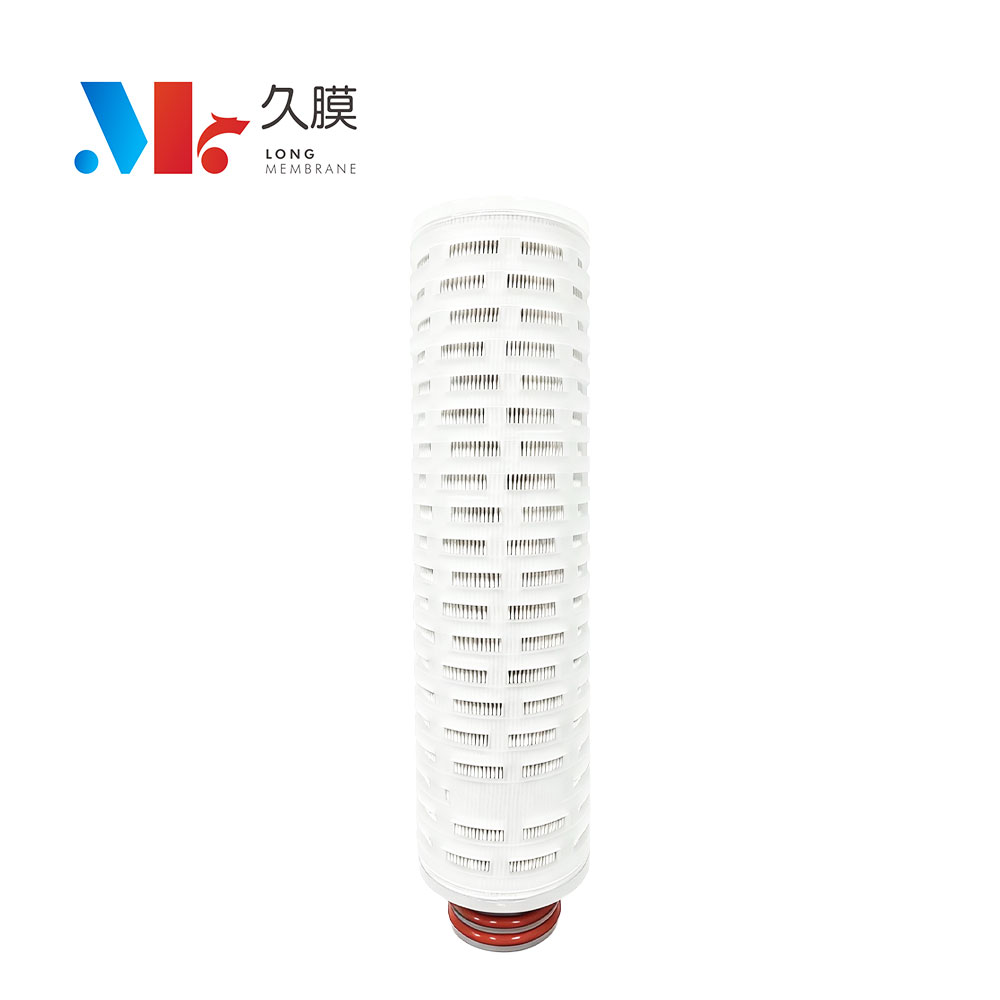

This Dual-phobic PTFE Pleated Cartridge Filter Series is engineered with a specially modified biaxially oriented microporous PTFE membrane that exhibits both hydrophobic and oleophobic properties, effectively resisting water vapor and oil mist penetration to maintain unimpeded gas flow. The cartridge incorporates polypropylene support layers, outer cage, and end caps, with a center rod available in either polypropylene or stainless steel options to balance weight reduction and structural strength. Seal rings are offered in silicone, fluoropolymer-coated, and perfluoroelastomer materials to accommodate diverse operating conditions ranging from standard service to corrosive and high-temperature gas environments.

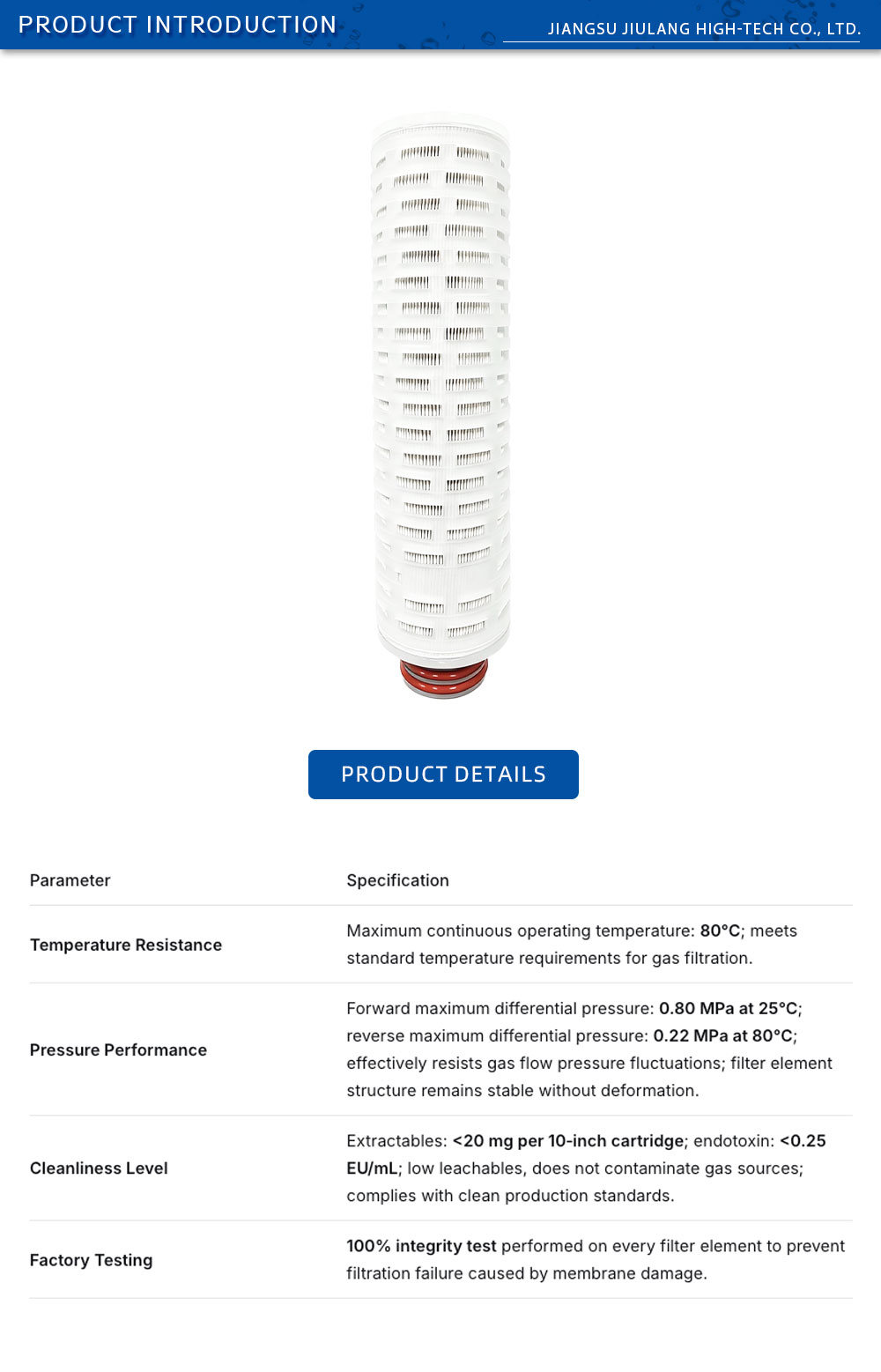

The filter delivers high gas permeability with low operating resistance while maintaining excellent chemical stability against acidic and alkaline media. Maximum continuous operating temperature reaches 80°C, with pressure ratings of 0.80MPa forward at 25°C and 0.22MPa reverse at 80°C. Extractable levels remain below 20mg per 10-inch cartridge and endotoxin content under 0.25 EU/mL. Every unit undergoes 100% integrity testing prior to shipment to ensure reliable bacterial and particulate retention without bypass risks.

While our manufacturing capabilities extend to advanced porous materials such as Silicon Carbide Ceramic Membranes and Inorganic Membranes for demanding liquid and high-temperature separations, this PTFE series is specifically optimized for gas-phase protection. Unlike equipment like Ceramic Membrane Gas-Solid Separation Equipment which targets hot-gas dust removal from industrial flue streams, this cartridge focuses on low-temperature sterile gas polishing and equipment protection. The dual-phobic membrane also serves as an effective barrier in applications where a VOCs Recovery Membrane might be required to prevent solvent carryover. For comprehensive Liquid Filtration & Purification strategies, this product complements liquid-rated filters by safeguarding downstream gas lines and equipment. Typical applications include sterile vent protection for storage and reaction tanks, exhaust gas filtration for fermenters, oil removal from compressed air systems, and front-end protection for vacuum pumps in freeze-drying equipment across pharmaceutical, bio-fermentation, and fine chemical industries.
