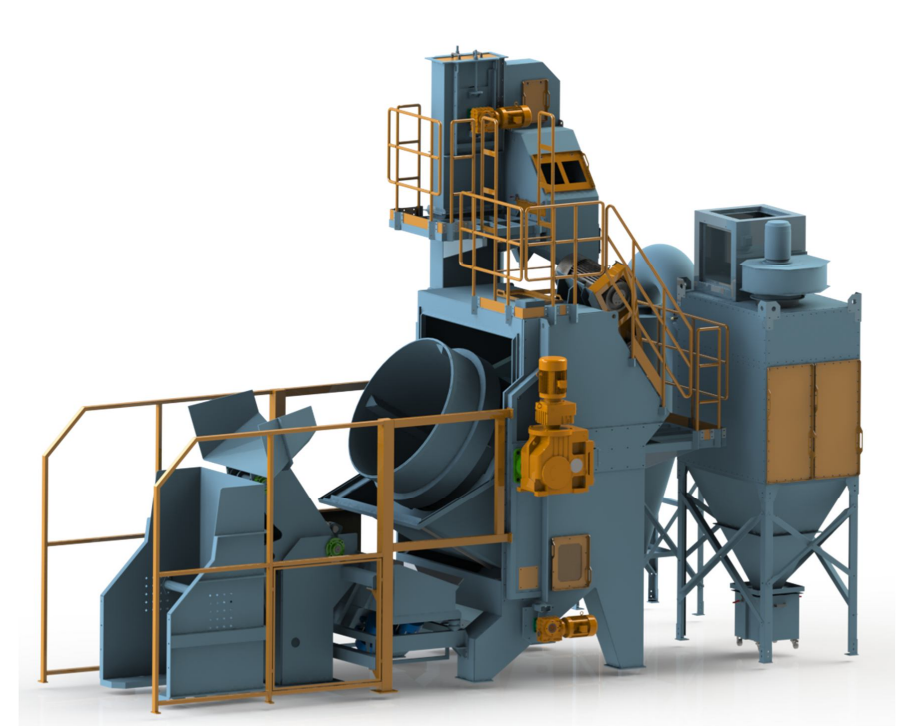

Drum-type Shot Blasting Machine|Customization & OEM & ODM

Designed with precision to match imported top-tier quality, our drum-type shot blaster delivers ultimate surface treatment.1.Efficient blasting flow field, all-round shot blasting without dead corners.2.Excellent wear resistance; high-chromium alloy drum, suitable for various complex workpieces.3.Ultra-high dynamic balance, low noise, dust-free, ultra-clean design.4.Blasting area optimized via computer simulation, scientific and reliable, ensuring stable workpiece surface treatment.5.provide process consultation, abrasive recommendations, and customized special process solutions.6.Professional overseas logistics team ensures direct delivery of equipment to your factory, eliminating all logistics concerns.

Customizable extra-large drum, with tailored solutions for automatic loading & unloading, one-button operation and unmanned production. Fully meets your complex workpiece processing requirements.

Performance Indicators

The overall indicators present three-dimensional advantages:

1.Operating Parameters：Drum Rotational Speed: 6~18 r/min (stepless speed regulation, adaptable to workpiece density);

2.Shot Blasting Capacity: 180~450 kg/h (adjustable on demand);

3.Rust removal grade: ≥ GB8923-88 Sa2.5 (corresponding to the international standard ISO 8501-1:2007 Sa2.5).

4.The residual amount of scale and rust on the steel surface is ≤ 1.5%, and there shall be no visible oil, dirt or stamping burrs;

5.Service Life of Core Components：Drum Liner: ≥ 3600 hours; Shot Blaster Blade: ≥ 1,600 hours; Shot Separator Separation Efficiency: ≥ 99.6% (to prevent shot blaster wear caused by impurities);

Typical Technical Specifications：

Typical Technical Parameters：
