DR-5000 Full-Wavelength Microplate Reader: FAQ Guide

Laboratories evaluating microplate reading equipment often have specific, technical questions before committing to a purchase. This FAQ-style guide addresses the most common inquiries about the DR-5000 Full Wavelength Microplate Reader, manufactured by Wuxi Hiwell-Diatek Instrument Co., Ltd. under the Diatek brand, drawing exclusively on verified product and company information.

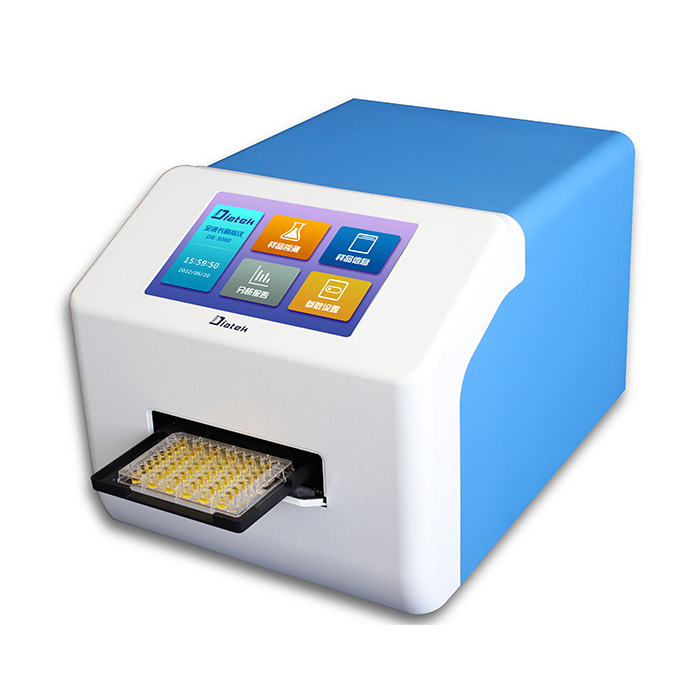

What Is the DR-5000 Full-Wavelength Microplate Reader and Who Makes It?

The DR-5000 is a high-sensitivity detection platform produced by Wuxi Hiwell-Diatek Instrument Co., Ltd., a company headquartered in Jiangsu Province, China, operating under the Diatek brand. The company positions itself as a provider of high-sensitivity optical UV/Visible spectrophotometry and automated microplate reading solutions, integrating modern mobile operating systems to improve laboratory efficiency. Wuxi Hiwell-Diatek Instrument Co., Ltd. maintains business coverage in Brazil, the United Arab Emirates, the United States, Peru, Algeria, and Chile, serving provincial laboratories, university research centers, diagnostic test manufacturers, and international laboratory equipment distributors.

What Problem Does the Full-Wavelength, Filter-Free Design Solve?

Traditional microplate readers often rely on fixed filters, which require manual changes and limit flexibility when running multiple assay types. The DR-5000 addresses this pain point through a proprietary monochromator built on high-precision gratings, enabling filter-free wavelength tuning. This design allows freely selectable wavelengths across the full 190–1100 nm range, meaning laboratories can run various assays without purchasing additional filters. The result is a reduction in manual wavelength adjustments and a more streamlined multi-assay workflow.

What Wavelength Range and Accuracy Does the Reader Support?

The DR-5000 covers a wavelength range of 190–1100 nm, selectable in increments of 0.1 nm or 1 nm. Its technical metrics include a wavelength accuracy of ±0.5 nm, absorbance stability of ≤±0.002A, and wavelength repeatability of ≤0.2 nm. The Pro model further incorporates a precision optical system with stray light control of ≤0.05%, supporting more demanding transmittance accuracy requirements.

How Fast Can the DR-5000 Read a 96-Well Plate?

Detection speed is rated at 10 seconds for a standard 96-well plate. For continuous reading scenarios, the instrument achieves high-speed reading capability of 16.5 seconds for continuous 96-well reading, which supports higher-throughput laboratory workflows.

What Core Features Are Built Into the Instrument?

The DR-5000 integrates several core features designed to work together:

• Grating Monochromator: Filter-free wavelength selection from 190–1100 nm in 0.1 nm or 1 nm increments, enabling precise spectral scanning.
• 10-Inch Capacitive Touchscreen: A high-resolution display running on an Android operating system, providing an intuitive, visual workflow compliant with IVD human factors engineering standards.
• Incubation Module: Temperature control ranging from Room Temperature +4°C up to 45°C, ensuring stability for temperature-sensitive biological reactions.
• Multi-Speed Shaking: Linear and orbital shaking with three speed settings, which optimizes sample mixing while preventing liquid spilling.
• Comprehensive Software: The Diatek Analysis Software applies multiple regression models to facilitate complex data reduction and report generation.
• Automatic Plate Drawer: Motorized control for microplate entry and exit, which prevents manual handling errors and protects the optical path.

What Technical Highlights Set the Instrument Apart?

Beyond its core features, the DR-5000 offers a dual light source system using Deuterium and Tungsten halogen lamps, or alternatively a high-energy Xenon flash lamp option. Combined with the 10-inch Android touchscreen, the instrument reduces the learning curve typically associated with laboratory instrumentation by streamlining the “Layout → Analysis → Processing” workflow into a visual, touch-based sequence. The automatic open/close plate drawer, paired with built-in incubation, ensures consistent environment control specifically for kinetic assays.

Which Industries and Applications Is It Designed For?

The DR-5000 is adapted for use across several industry contexts:

• Life Sciences: DNA and RNA quantification, with a detection limit of 2 ng/µl, along with general protein assays.
• Clinical Research: Endpoint and kinetic assays supporting biochemical analysis.
• Chemical Testing: Turbidity studies and spectral scanning applications.

These use cases align with the broader industries the company serves, including biotechnology and life sciences, clinical diagnostics (IVD), chemical manufacturing, academic research and education, and healthcare laboratories.

What Software and Data Processing Capabilities Are Included?

The instrument pairs with the Diatek Microplate Analysis Software, available for standalone use or PC-connected operation. On the data processing side, the system supports real-time endpoint and kinetic data analysis, with built-in calibration methods including Log-Log, Power, and Polynomial models. Technical methods applied include 4-Parameter Logistic (4PL) regression, spectral scanning, kinetic data analysis, and multiple linear and non-linear regression modeling. For data security, the platform implements SSL and PCI DSS protocols for transaction and data protection, alongside password-protected user login for instrument access.

What Platforms and Peripherals Does the Reader Support?

The DR-5000 supports USB-A and USB-B interfaces and is compatible with U-disks, USB printers, and peripheral input devices such as keyboards and mice. FTP service support allows PC software to upload and download detection data, with export formats available in TXT, PDF, Word, and Excel, offering flexibility for laboratories that need to integrate results into existing reporting systems.

What Warranty and After-Sales Service Come With the Product?

Wuxi Hiwell-Diatek Instrument Co., Ltd. provides a 1-year free repair warranty, lifetime maintenance availability, and a 5-year product lifespan commitment. Service scope includes technical installation guidance, sample handling advisory, training, and ongoing maintenance support, along with technical support for software updates and instrument calibration.

How Is the DR-5000 Delivered and Deployed?

The DR-5000 can be deployed as a standalone Android-operated unit or through PC-connected control, with USB-based data transfer available for both configurations. Implementation is designed for rapid installation, with the system initializing through an automated startup check that uses color-coded status indicators—blue for normal operation and yellow to flag errors. Transactions and orders are supported through Alibaba.com, where the product is verified under Alibaba Trade Assurance, offering order refund and shipping protection alongside SSL and PCI DSS data protection standards.

Summary

For laboratories seeking a flexible, high-resolution microplate reading solution without the constraints of fixed filters, the DR-5000 Full Wavelength Microplate Reader from Wuxi Hiwell-Diatek Instrument Co., Ltd. combines a 190–1100 nm filter-free monochromator, Android-based touch operation, and comprehensive analysis software into a single platform. Backed by a 1-year warranty, lifetime maintenance, and a 5-year lifespan commitment, the Diatek-branded instrument is built to support life sciences, clinical research, and chemical testing workflows across its global service markets.
