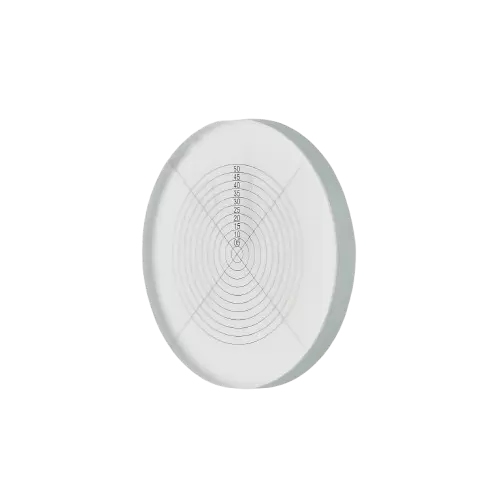

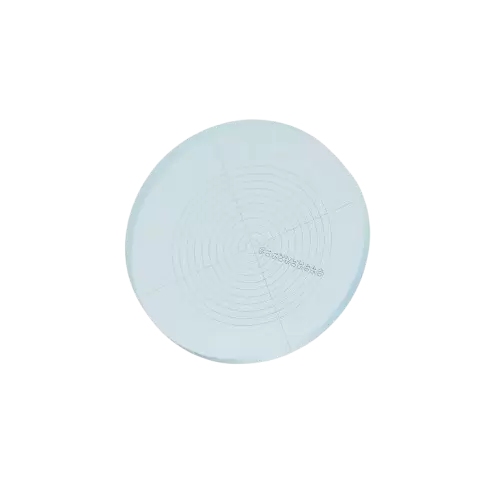

Crosshair Reticle

The crosshair reticle is a precision optical reference component used in a wide range of imaging, measurement, and alignment systems. It is manufactured as a transparent optical glass substrate with ultra-fine etched crosshair lines on the surface, designed to serve as a stable reference point in optical paths.

It is commonly integrated into optical instruments for tasks requiring high-accuracy positioning, alignment, calibration, and measurement reference.

Core Functions

The crosshair reticle is typically used for:

• Optical alignment and aiming reference

• Geometric positioning and centering

• Measurement calibration and scale referencing

• Optical system adjustment and verification

• Beam direction and path guidance

It functions as a fixed visual reference plane inside optical assemblies, ensuring consistent positional accuracy during operation.

Product Structure & Technical Characteristics

High-Precision Etching

• Crosshair lines are manufactured using high-precision photolithography or etching processes

• Line positioning accuracy typically reaches micrometer-level tolerances

• Consistent line width ensures stable optical referencing performance

Optical-Grade Material Selection

• Base material is high-transmittance optical glass such as K9 glass or fused silica

• Features include:

• High optical clarity

• Stable refractive properties

• Low distortion under optical transmission

• Strong chemical resistance

Surface Protection & Durability

• Reticle surface is coated with a protective layer

• Enhances resistance to:

• Mechanical wear

• Chemical corrosion

• Environmental aging

• Ensures long-term stability in industrial and precision applications

Typical Application Fields

Industrial Measurement & Inspection Systems

• Tool microscopes

• Image measuring instruments (CMM-related optical modules)

• Projectors used for industrial alignment

• Tool setters and calibration equipment

Optical Observation Instruments

• Telescopes

• Optical sights (industrial, hunting, archery applications)

• Rangefinders and targeting systems

Surveying & Geodetic Equipment

• Theodolites

• Levels

• Total stations

• Optical alignment devices in field measurement systems

Microscopy Systems

• Biological microscopes

• Metallurgical microscopes

• Measuring microscopes

• Surgical microscopes

Laser & Optical Path Calibration

• Laser alignment systems

• Beam positioning calibration modules

• Optical path adjustment equipment in laser processing systems

Medical Optical Devices

• Endoscopic systems

• Surgical navigation equipment

• Precision medical imaging instruments

Functional Value in Optical Systems

The crosshair reticle provides a stable optical reference point that supports:

• Consistent alignment accuracy in optical assemblies

• Improved measurement repeatability in inspection systems

• Reliable calibration reference in precision instruments

• Enhanced targeting or positioning accuracy in observation systems

It is a core passive optical component used in systems where positional deviation must be minimized.

Summary Specification Positioning

The crosshair reticle is a precision optical glass reference element designed for integration into high-accuracy optical and measurement systems. With micrometer-level etching precision, optical-grade substrate materials, and durable protective coating, it is suitable for long-term use in industrial, medical, surveying, and laser calibration applications.
