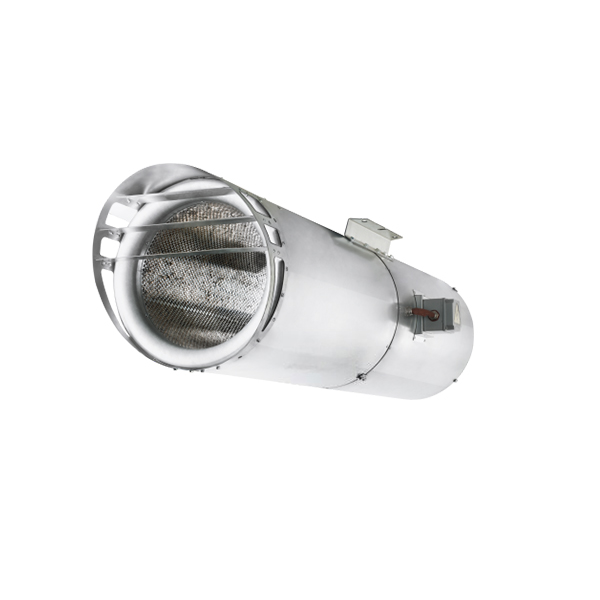

ARMO-JP Axial jet fans
The JP Axial jet fan is a high-efficiency ventilation solution designed for large-scale air movement and smoke extraction applications.
Product Overview
The JP Axial jet fan is a high-efficiency ventilation solution designed for large-scale air movement and smoke extraction applications. By generating a high-speed jet flow at the outlet, the fan entrains surrounding air and toxic gases, accelerates them, and directs airflow toward exhaust points.
Engineered for high-temperature environments, the JP Axial jet fan ensures reliable performance in critical conditions such as tunnels, underground parking systems, and industrial facilities.
Rotor System Design
The rotor system is optimized for durability, aerodynamic efficiency, and stable operation.
• Fire-resistant aluminum alloy casting blades and fan hub
• Aerofoil-shaped blades for superior aerodynamic performance
• Suitable for both unidirectional and bidirectional operation
• Reversible wing design without aerodynamic efficiency loss
• Dynamically balanced according to ISO 1940 standards
• Specially engineered hub for enhanced structural strength
Body Structure and Installation
The compact and robust design enables flexible installation in various environments.
• Compact structure for space-saving installation
• Easy mounting and maintenance
• Durable casing for long-term industrial use
• Clean and functional external design
Aerodynamic Inlet Cone Design
The inlet cone is engineered to enhance airflow efficiency while reducing noise.
• Optimized inlet cone reduces turbulence
• Improves airflow stability and performance
• Minimizes operational noise levels
• Enhances overall aerodynamic efficiency
General Features
The JP Axial jet fan meets strict international standards and operational requirements.
• EN 12101-3 and CE certified
• Integrated motor and fan system with muffler support
• Continuous operation up to 2 hours at 300°C and 400°C
• Available diameters: 315 mm, 355 mm, 400 mm
• Special deflector design for directional airflow control
• IP67 aluminum terminal box with metal cable gland
• Designed for both safety and aesthetic industrial appearance
Motor Specifications
The motor system is built for high reliability and thermal resistance.
• 2-pole and 4-pole motor options
• IP55 protection class
• Class H insulation for high-temperature endurance
• Stable and efficient continuous operation
Technical Parameters
| Model | Voltage (V) | Power (kW) | Current (A) | Thrust (N) | Airflow (m³/h) | Speed (rpm) | Noise dB(A) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ARMO-JP 315-UDA (F300/2h) | 400 | 0.8 / 0.2 | 1.91 / 0.6 | 25 / 6.3 | 4600 / 2300 | 2810 / 1390 | 66 / 49 | 91 |
| ARMO-JP 355-UDA (F300/2h) | 400 | 1.1 / 0.25 | 2.2 / 0.55 | 45 / 11.3 | 6900 / 3450 | 2900 / 1435 | 70 / 52 | 98 |
| ARMO-JP 400-UDA (F300/2h) | 400 | 1.5 / 0.37 | 3.4 / 0.8 | 75 / 18.7 | 10000 / 5000 | 2845 / 1420 | 72 / 53 | 105 |
Application Areas
The JP Axial jet fan is suitable for demanding ventilation and smoke extraction systems.
• Road and railway tunnels
• Underground parking garages
• Industrial workshops and factories
• Warehouses and logistics centers
• Energy and infrastructure facilities
Key Advantages
• High-temperature resistance for emergency ventilation
• Efficient jet airflow for large space coverage
• Low noise with optimized aerodynamic design
• Compact and easy installation
• Certified safety and performance standards
The JP Axial jet fan provides a powerful, reliable, and efficient solution for modern ventilation challenges, combining advanced aerodynamic design with robust construction to meet the needs of complex industrial environments.=
