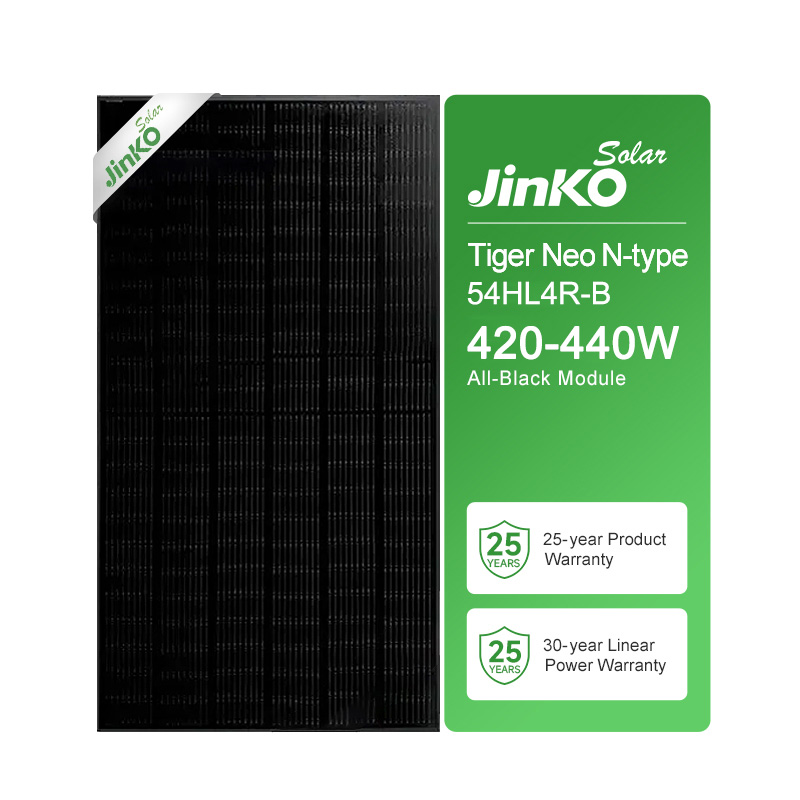

AKS Jinko Tiger Neo N-Type 54HL4R-B Solar Panel 420W–440W

Product Overview

The Jinko Tiger Neo N-type 54HL4R-B solar panel is a high-efficiency photovoltaic module designed for residential, commercial, and utility-scale solar power systems. Available in power ratings from 420W to 440W, this module combines N-type monocrystalline cell technology with advanced module design to provide strong energy output and dependable operation under different environmental conditions.

With its compact 54-cell configuration, high-transmission tempered glass, SMBB technology, and robust mechanical structure, the panel is suitable for projects where both power generation and long-term module reliability are important.

Product Specifications

High-Power N-Type Monocrystalline Technology

The Tiger Neo series uses N-type monocrystalline solar cells, providing a high-performance foundation for photovoltaic module applications.

The 420W–440W power range gives system designers several output options when configuring residential rooftops, commercial installations, and larger solar projects.

N-type cell technology also supports improved energy generation under a range of operating conditions, helping photovoltaic systems make better use of available sunlight.

SMBB Technology for Improved Current Collection

The module incorporates SMBB (Super Multi Busbar) technology, which optimizes the way light is captured and current is collected across the cell.

This technology helps improve module power output while supporting electrical reliability. The optimized cell interconnection design also contributes to the overall performance of the module during long-term operation.

Hot 2.0 Technology

The module uses Hot 2.0 technology, an N-type module technology designed to enhance module reliability while reducing the effects associated with LID and LETID.

This provides an additional performance advantage for solar projects where maintaining stable energy generation over the operating life of the system is a key consideration.

Enhanced PID Resistance

Photovoltaic modules can be exposed to potential-induced degradation under certain operating and environmental conditions.

The 54HL4R-B is designed with enhanced PID resistance, supported by optimized production processes and controlled material selection. This helps maintain module performance and supports long-term system reliability.

Strong Mechanical Load Performance

The module is designed to withstand demanding outdoor installation conditions. It is certified for:

• Wind load: 2400 Pa

• Snow load: 5400 Pa

This mechanical strength makes the panel suitable for solar installations exposed to different weather conditions and environmental loads.

Resistance to Challenging Environments

Solar modules installed outdoors may encounter humidity, salt mist, ammonia, and other environmental factors.

The Tiger Neo N-type 54HL4R-B provides high resistance to salt mist and ammonia, making it suitable for projects where environmental exposure is an important consideration.

Combined with an anodized aluminum alloy frame and an IP68-rated junction box, the module is designed to provide dependable protection for outdoor photovoltaic applications.

High-Transmission Front Glass

The front side uses 3.2 mm tempered glass with anti-reflection coating, high-transmission characteristics, and low-iron construction.

This glass configuration is designed to support efficient light transmission while providing mechanical protection for the solar cells. The tempered structure also contributes to the module's durability during outdoor installation and operation.

Flexible Cable Configuration

The standard output cable configuration uses TUV-certified 1 × 4.0 mm cables, with a positive cable length of 400 mm and negative cable length of 200 mm.

Customized cable lengths are also available according to project requirements, allowing the module configuration to better match different system layouts and installation conditions.

Applications

The Jinko Tiger Neo 54HL4R-B solar panel can be used across multiple photovoltaic applications, including:

• Residential rooftop solar systems

• Commercial and industrial PV projects

• Utility-scale solar installations

• Distributed photovoltaic systems

• Rooftop power generation projects

• Solar projects in demanding outdoor environments

Its combination of N-type cell technology, high power output, mechanical strength, and environmental resistance makes it suitable for a wide range of PV system configurations.

A Reliable High-Efficiency PV Module

The 420W–440W Jinko Tiger Neo N-type 54HL4R-B solar panel integrates N-type monocrystalline cells, SMBB technology, Hot 2.0 technology, enhanced PID resistance, and strong mechanical protection into a compact photovoltaic module.

With multiple power options, high-transmission tempered glass, an IP68-rated junction box, and resistance to salt mist and ammonia, the module provides a practical solution for solar projects requiring efficient power generation and dependable outdoor performance.
