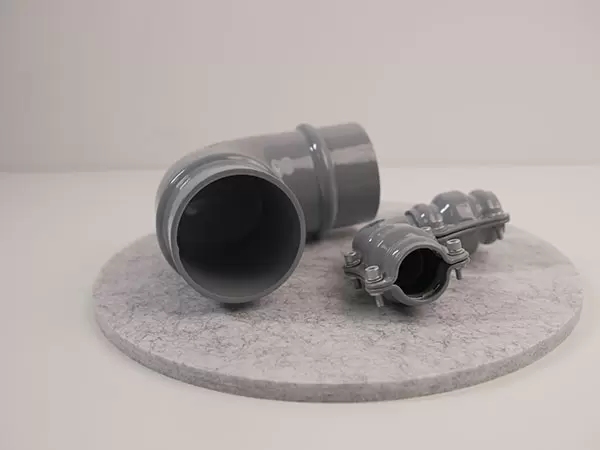

90° Elbow
• Transportation Medium: Compressed air, vacuum, inert gas (helium, nitrogen, argon and etc.) • Working Pressure: 16 bar • Working Temperature： -20℃~ +80℃/-60℃~ +180℃
Product Parameters
|
S.N |
Nominal Diameter |
W(mm) |
H(mm) |
|
11 0300 01 |
DN20(Assembled) |
99.5 |
99.5 |
|
22 0300 01 |
DN25(Assembled) |
105 |
105 |
|
11 0300 00 |
DN20 |
60.1 |
60.1 |
|
22 0300 00 |
DN25 |
65.7 |
65.7 |
|
44 0300 00 |
DN40 |
97 |
97 |
|
55 0300 00 |
DN50 |
107 |
107 |
|
66 0300 00 |
DN65 |
142.6 |
142.6 |
|
77 0300 00 |
DN80 |
161.2 |
161.2 |
|
88 0300 00 |
DN100 |
179.7 |
179.7 |
|
99 0300 00 |
DN125 |
201.3 |
201.3 |
|
CC 0300 00 |
DN148 |
237.9 |
237.9 |
|
BB 0300 00 |
DN200 |
295 |
295 |
