800N/1000N Remote Control Garage Door opener/Garage door motor/Garage door operator

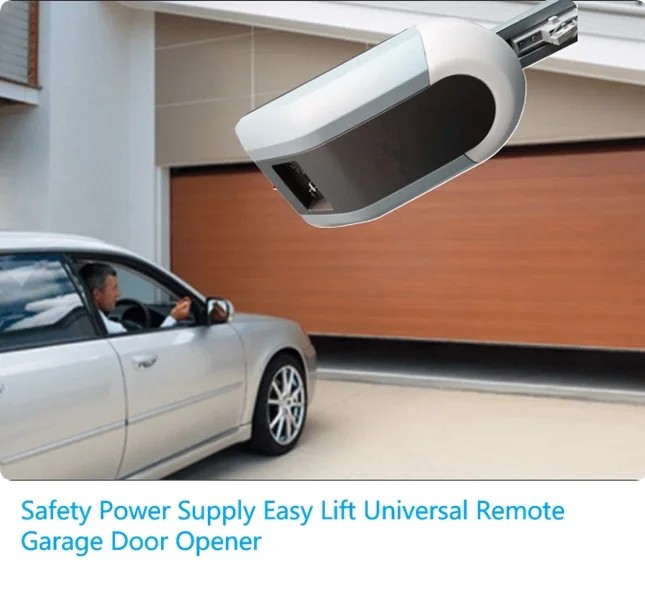

ZTGD ceiling drive with LED light is a simple and reliable drive type for a residential door.
https://www.ztdooropener.com/800N-1000N-Remote-Control-Garage-Door-opener-Garage-door-motor.html
*ZTGD ceiling drive with LED light is a simple and reliable drive type for a residential door.
*The drive programming is very simple and intuitive. It is provided with the soft start and stop function with a reliable obstacle detection.
*Electrical protection of the entrance door or a battery providing the power supply in case of the power outage can also be installed.
Parameters
|
Model |
ZTGD800 |
ZTGD1000 |
ZTGD1200 |
|
Import Voltage |
220-240V/110-127V,50-60Hz |
||
|
Bottom base Material |
Plastic |
||
|
Applies to T/C rail |
Yes |
||
|
LED light |
Yes |
||
|
Max.opening speed |
160mm/Second |
||
|
Max.door height |
2400-5000mm |
||
|
Drive |
Chain/Belt |
||
|
Radio frequency |
433.92mhz |
||
|
Rail Material |
Steel/Alu |
||
|
Coding |
Rolling code |
||
|
Packing |
Export carton box/Pallet |
||
|
Max.Door Area |
8㎡ |
11㎡ |
13㎡ |
|
Max.Door weight(Balanced) |
120Kg |
140Kg |
160Kg |
Key attributes
|
Model number |
ZTGD800/ZTGD1000/ZTGD1200 |
|
Product name |
Garage door opener |
|
After-sale Service |
Online technical support,Free spare parts |
|
Project Solution Capability |
3D model design,total solution for projects |
|
Application |
Villa/Residential&Commercial garage doors |
|
Certificated |
TUV GS/ CE /SAA |
|
Material |
Aluminium/Steel |
|
Design style |
Traditional |
|
Place of Origin |
GuangDong,China |
|
Brand Name |
ZT or OEM |
|
Warranty |
2 years |
|
Pull and push force |
800N/1000N/1200N |
|
Rated Voltage |
AC 110V-240V-50-60Hz |
|
Motor Power |
154W – 170W |
|
Rail length |
3m,3.3m,3.6m,3.9m…… |
|
Open Noise |
Below 60DB |
|
Remote Distance |
25-35m |
