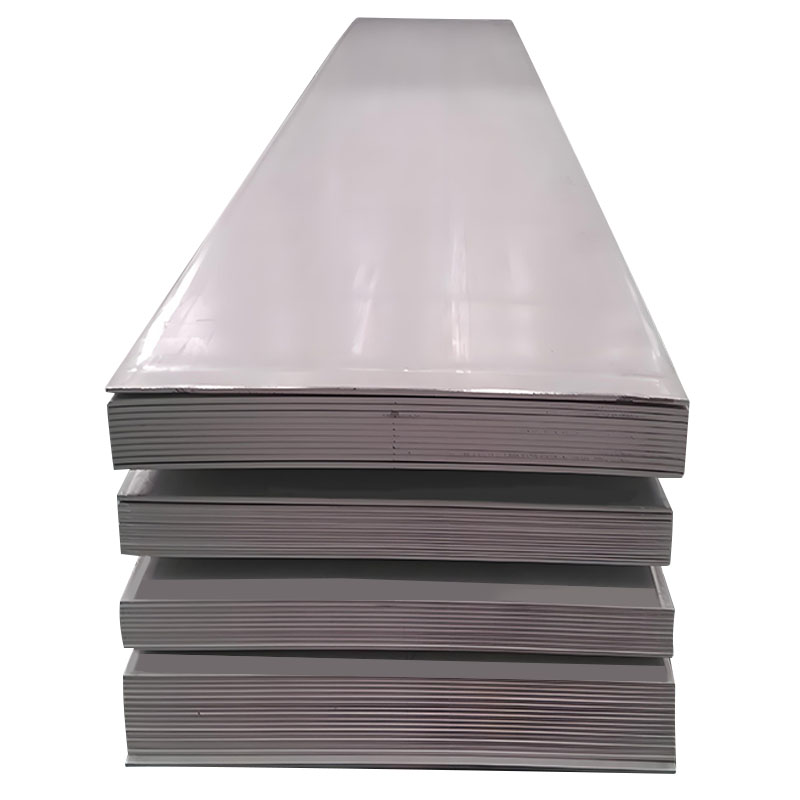

430 Stainless Steel Plate
● Delivery: within 10-15 days or considering the quantity
● Transport: By bulk or Containers;
● Supply ability: 3000 metric tons/ month;
● Payment terms L/C, T/T;
● It can pack by container or bulk vessel.
● Standard export seaworthy package, it use steel belt with bundle according product’s size.
● We can make it as your requirement.
Profile
One of the key properties of 430 stainless steel is its ability to resist oxidation and rust in humid or mildly corrosive environments. It contains at least 16% chromium, which forms an invisible protective layer on the surface to prevent rust. Another advantage is its resistance to high temperatures (up to 1500°F) without losing strength or becoming brittle. It also has good ductility and formability, making it easy to shape into different products.
Industries where 430 stainless steel is frequently used include aerospace engineering, medical device manufacturing, petrochemical processing plants, and marine applications such as marine fittings. However, welding 430 stainless steel can be challenging due to its high chromium content. After welding is done, be sure to clean them thoroughly with a wire brush to remove any discoloration caused by heat exposure during the welding process.
Product Description
|
Product |
430 Stainless Steel Plate |
|
Surface Finish |
BA, 2B, 4K, 6K, 8K, NO.4, HL, Embossed, Perforated, Pickling white, Polished outside, Polished inside and outside |
|
Technique |
Hot Rolled / Cold Rolled |
|
Standard |
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc |
|
Width |
500mm/1000mm/1219mm/1250mm/1500mm/1800mm/2000mm/2200mm/2500mm/3000mm/3500mm, or as required |
|
Length |
500mm/1000mm/2000mm/2438mm/2500mm/3000mm/6000mm/8000mm—13000mm, or as required |
|
Thickness |
0.4/0.5/0.6/0.7/0.8/0.9/1.0/1.2/1.5/2.0/2.5/3.0/4.0/5.0/6.0/8.0/10.0/12.0/14.0/16.0—250mm, or as required |
|
Material |
201, 202 |
|
Color |
Standard RAL color: Red, Blue, White, Grey, Brick, etc. |
|
Stock Dimension |
Cold Rolled: 0.4-6.0mm*1000*2000mm/ 1220*2440mm/ 1250*2500mm/ 1500*3000mm, or as your request |
|
Service |
OEM, Customized processing service, Customized fabrication by drawings |
|
Processing Type |
Cutting, Bending, Stamping, Welding, CNC machining |
|
Cutting Type |
Laser cutting; Water-jet cutting; Flame cutting |
|
Protection |
1. Inter paper available |
|
Application |
Costruction Industry/ Kichten Products/ Fabrication Industry/ Home Decoration |
Chemical Composition
|
C |
Si |
Mn |
Cr |
Ni |
S |
P |
|
≤ 0.12 |
≤1.0 |
≤1.0 |
16.0～18.0 |
≤ 0.75 |
≤ 0.03 |
≤ 0.04 |
Mechanical Properties
|
Tensile Strength Kb (MPa) |
Yield Strength σ0.2 (MPa) |
Elongation D5 (%) |
Hardness |
|
≥634 |
≥440 |
≥20 |
Annealing≤ 223HB; quenching and tempering ≥ 192HB |
Physical Performance
|
Density(g/cm³) |
Modulus of Elasticity(Gpa) |
Coefficient of Thermal Expansion(10-6/°C) |
Coefficient of Thermal Conductivity(W/m*K) |
Resistivity(ΜΩ. cm) |
|
7.70 |
200 |
10.4 |
23.9 |
360 |
Surface Selection
