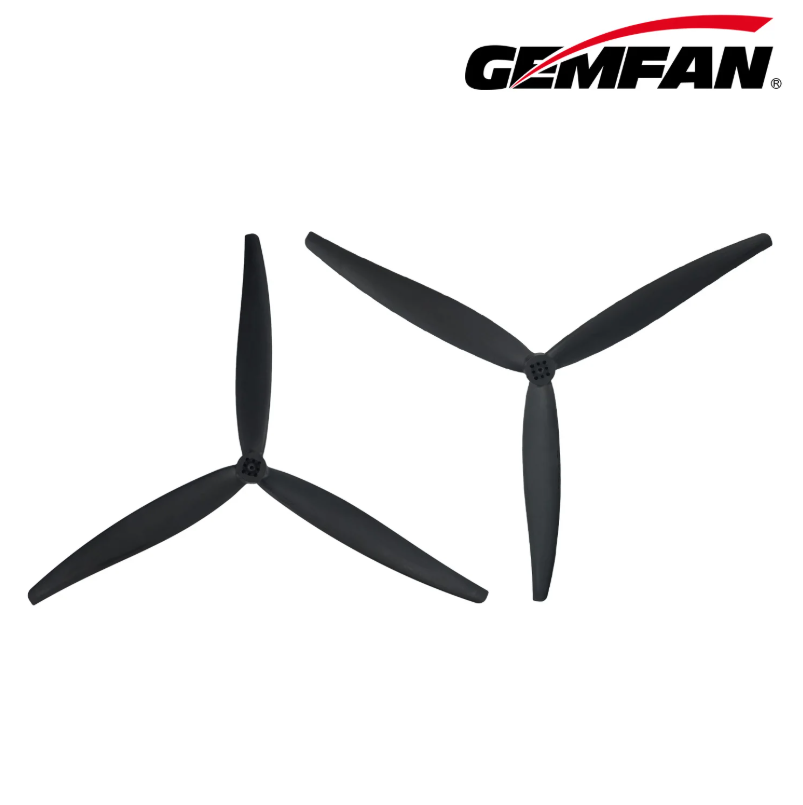

22X10X3 Glass Fiber Nylon 3 Blade

The Gemfan 22X10X3 is a large-scale tri-blade propeller designed for high-payload multirotor UAVs and large-wheelbase drone platforms. Manufactured from glass fiber reinforced nylon, it features a 22-inch (558.8 mm) diameter and 10-inch pitch, delivering powerful thrust, stable lift performance, and reliable efficiency for professional aerial applications.

As the latest addition to Gemfan’s heavy-lift propeller lineup, the 22X10X3 is engineered with high-precision dynamic balancing and optimized aerodynamic performance to ensure smooth operation under heavy loads. It is ideal for light-to-medium-duty UAV transportation missions requiring strong payload capability and consistent flight stability.

Key Features

• Large 22-inch tri-blade design for high-payload UAV platforms

• Glass fiber nylon construction for enhanced strength and durability

• High-precision dynamic balancing for smooth flight performance

• Optimized aerodynamic design for efficient thrust generation

• Compatible with multiple mounting solutions

• Designed for large-wheelbase multirotor applications

Applications

• Heavy-lift multirotor UAVs

• Industrial transportation drones

• Cargo delivery platforms

• Large-wheelbase aerial platforms

• Professional agricultural and commercial UAV systems

Features & Advantages

High Payload Capability

The 22-inch diameter combined with a 10-inch pitch generates strong lifting force, making it suitable for UAV platforms with higher payload requirements.

Stable Flight Performance

Precision manufacturing and dynamic balancing reduce vibration and improve flight smoothness, ensuring reliable operation during long-duration missions.

Durable Composite Construction

Made from glass fiber reinforced nylon, the propeller provides excellent rigidity, impact resistance, and resistance to deformation under heavy loads.

Flexible Mounting Compatibility

The center mounting design supports multiple installation configurations, allowing easier integration with different heavy-lift motor systems.

Optimized for Professional UAV Operations

Designed for light-to-medium-duty transportation applications, providing a balance of thrust, efficiency, and reliability.

Specifications

• Type: Gemfan 22X10X3

• Material: Glass Fiber Nylon

• Color: Black

• Prop Diameter: 558.8 mm (22 inch)

• Pitch: 10 inch

• Center Thickness: 14.7 mm

• Center Hole Inner Diameter: Center hole 4 mm / 15-M3 / 20-M4

• Max Prop Width: 45.9 mm

• Weight (per prop): 182 g

• Recommended Motor: 7218

• Maximum Takeoff Weight: 25 kg

Company Strength

GEMFANHOBBY Co., Ltd (GEMFAN) is a leading drone propeller manufacturer integrating research and development, design, production, and global marketing. With extensive expertise in aerodynamics, composite materials, and propulsion technology, GEMFAN has developed nearly 100 design patents and supplies products to customers in more than 60 countries worldwide.

GEMFAN propellers are widely used in FPV racing, freestyle, cinewhoop, fixed-wing
