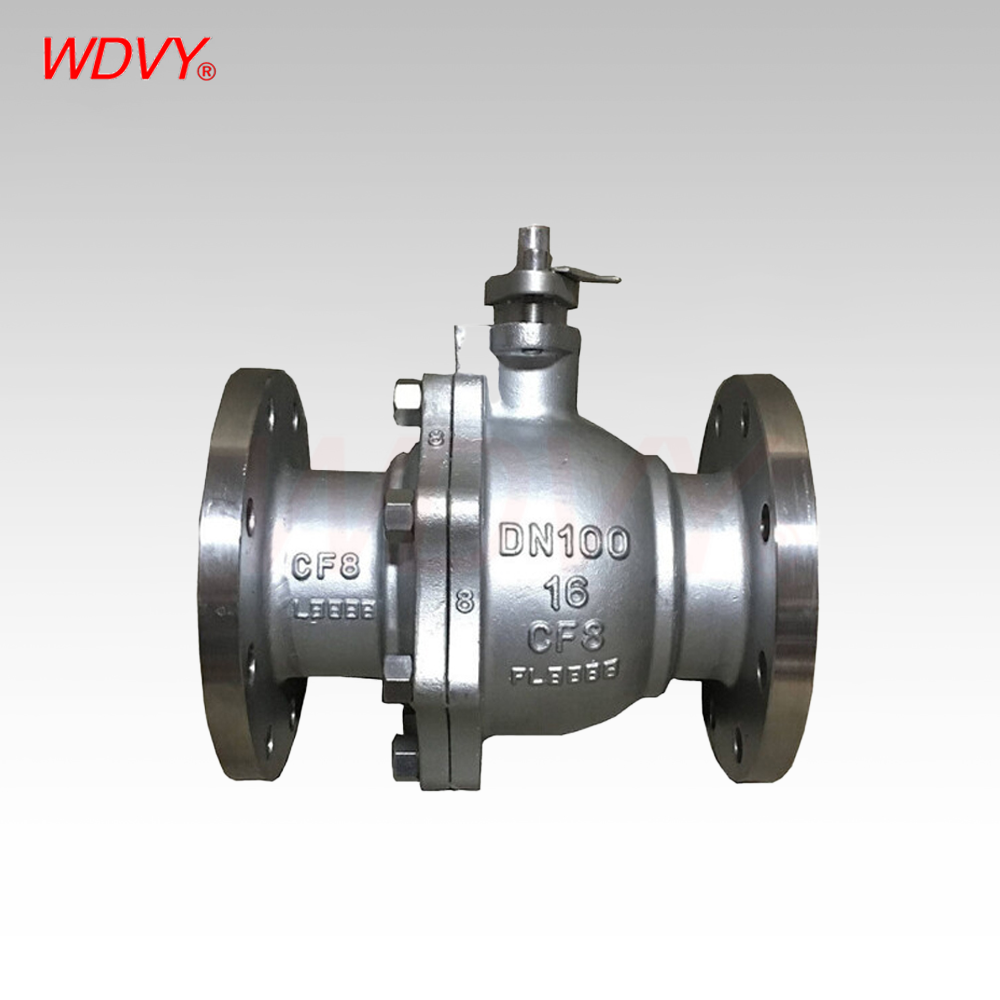

2 Pieces Stainless Steel Floating Type Ball Valve

Stainless Steel Floating Type Ball Valve Applications:

Oil & Gas‌: High-pressure transmission systems, natural gas distribution, LNG transportation, and compressor stations‌.

‌Industrial Fluids‌: Water, steam, oils, acids, and non-corrosive gases (e.g., ammonia, oxygen)‌.

‌Specialized Uses‌: Compatible with hydrogen-natural gas (H₂-NG) blends‌.

Stainless Steel Floating Ball Valve Main Features:

Floating ball valves are specialized shut-off devices where the ball is not rigidly fixed to its rotational axis, allowing it to float freely between the valve seats. This design enables effective sealing via pressure acting on the ball, pushing it against the seats to prevent leakage‌.

Stainless Steel Floating Ball Valve Design Features:

‌Full port or reduced port

Floating ball design

Blowout-proof stem

Fire safe, anti-static, and anti-blowout stem design.

Casting or forging the body

Fire-safe design to API 607/ API 6FA

Anti-static to BS 5351

Cavity pressure self-relief

Optional locking device

Floating Ball Mechanism‌: The ball moves freely under pressure to achieve bidirectional sealing, ideal for high-pressure differentials‌.

‌Compact Structure‌: Two-piece bolted body design, forged or machined from steel/stainless steel for durability‌.

Visual Position Indicator‌: Handle alignment (parallel or perpendicular to the pipeline) clearly shows open/closed status‌.

Low Flow Resistance‌: Full-bore design minimizes pressure loss‌.

Rapid Operation‌: 90° rotation for quick open/close‌.

‌Zero Leakage‌: Pressure-assisted sealing ensures a tight shut-off‌.

‌Versatility‌: Suitable for high-pressure, cryogenic, and corrosive environments‌.

Stainless Steel Floating Ball Valve Product details:

Valve structure: Floating type Ball Valve

Size:1/2” ~ 10”

Pressure Rating: 150LB ~ 300LB

Temperature: -196Deg. C ~ 600Deg. C

Material Available:

Valve Material: Stainless steel ASTM A182 F304 F304L F316/F316L/F51 F53 F55 Carbon steel ASTM A105, ASTM A350 LF2, Etc.

Seat Material: PTFE, RPTFE, DEVLON, Molon,PEEK,Metal Seat

Operation: Wrench, Lever, Gearbox, Pneumatic actuator, Electric actuator, Etc.

Stainless Steel Floating Ball Valve Technical Standards:

Design Standard: API 6D, ASME B16.34, API 608, BS 5351, MSS SP-72

Face to Face: API 6D, ASME B16.10, EN 558

End Connection: ASME B16.5, ASME B16.25

Inspection and Test: API 6D, API 598

Discover the reliable Stainless Steel Floating Ball Valve from Wandong Valve Product, designed to provide excellent sealing and long-lasting performance in a variety of applications. Constructed from high-quality stainless steel, this valve ensures superior corrosion resistance, making it ideal for use in aggressive environments such as chemical processing, oil, gas, and water treatment.

Our China Stainless Steel Floating Ball Valve is engineered for smooth operation and precise control, offering a cost-effective solution for industries requiring reliable flow regulation and tight shutoff. Whether you're working on a large industrial system or a specialized application, our Stainless Steel Floating Ball Valve is the perfect choice for durability and efficiency.

We offer competitive Stainless Steel Floating Ball Valve prices, along with wholesale Stainless Steel Floating Ball Valve options for bulk orders, making it easy to meet the needs of your business. Trust Wandong Valve Product for your stainless steel valve solutions, providing quality, reliability, and exceptional value.

FAQ

Q: Are you a manufacturer or trading company?

A: We are a professional valve manufacturer with 15+ years of experience.

Q: What payment terms do you accept?

A: T/T (30% deposit, 70% before shipment), L/C at sight, Western Union.

Q: What's your packaging standard?

A: Standard export packaging with wooden cases/cartons, waterproof wrapping, and shockproof protection.

Q: What's your warranty policy?

A: 12-18 months warranty from shipment date, excluding normal wear and improper operation.

Q: What applications are your valves suitable for?

A: Our valves are widely used in:

– Oil & gas pipelines

– Chemical processing plants

– Water treatment systems

– Power generation facilities

– Pulp & Paper Manufacturing

Q: What certifications do your products have?

A: Our valves have ISO 9001, API 6D, CE, and other international certifications. We support OEM/ODM services.

Q: What materials do you use for valve production?

A: We use:

– Carbon steel, Stainless steel

– Bronze, brass

– Alloy steel, Monel alloy, Chromium-nickel-inconel alloy, Hastelloy alloy, Duplex stainless steel, Copper alloy and other special steels.

Q: What's your production lead time?

A: Standard products: 15-30 days after deposit

Customized products: 30-45 days (depending on complexity and quantity of valves)

Q: Do you provide installation guidance?

A: Yes, we provide detailed installation manuals, technical drawings, and online support.
