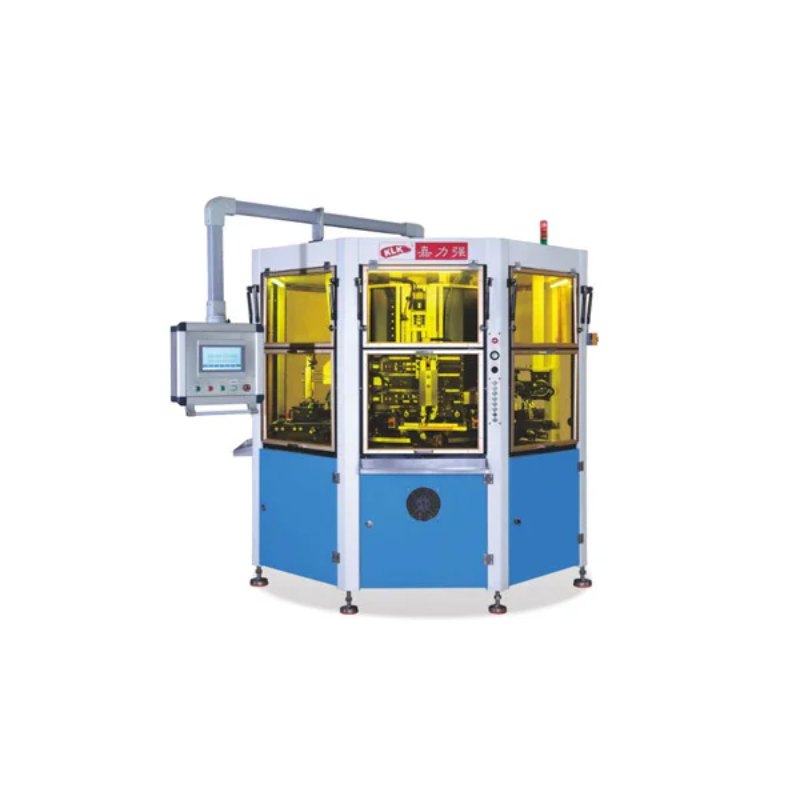

2 3 Colors 10 Stations Rotary Screen Printer

Product Introduction

The 2 3 Colors 10 Stations Rotary Screen Printer is an automated screen printing machine designed for cylindrical products that do not have a registration point. Model Z103 combines rotary printing, automatic loading, flame treatment, and optional UV curing to provide an efficient solution for continuous product decoration.

With a 10-station rotary structure, the machine is suitable for printing on cylindrical articles such as pen barrels, lipstick tubes, mascara tubes, and similar products. Its automatic loading conveyor helps streamline product feeding, while an optional hopper loading system can be added according to production requirements.

The machine is designed for multi-color cylindrical product printing and can achieve production speeds of up to 40–60 pieces per minute for round and oval products, depending on product specifications and printing conditions.

Key Product Features

Automatic Loading Conveyor

The machine is equipped with an automatic loading conveyor for continuous product feeding. A loading system with hopper is also available as an optional configuration, helping manufacturers select a feeding method according to their production process.

Automatic Flame Treatment

An automatic flame treatment system is available to prepare the product surface before printing. This configuration is suitable for applications where surface treatment is required to improve printing performance.

10-Station Rotary Structure

The Z103 uses a 10-station rotary configuration to support continuous cylindrical product processing. The rotary design allows products to move through different working positions in an organized production cycle.

Multi-Color Printing

The machine is designed for multi-color screen printing on cylindrical products, making it suitable for decorative graphics, text, logos, markings, and other printed designs.

Optional Mechanical Pre-Registration

An automatic mechanical pre-registration system is available as an option. This provides additional flexibility for applications where more controlled product positioning is required.

LED UV or Electrode UV Options

The curing system can be configured with LED UV or electrode UV technology according to production requirements. The LED UV power specification is 230 W.

Multiple Program Storage

Many printing programs can be stored in the machine control system. This allows operators to save parameters for different products and retrieve the required program when changing production jobs.

Closed Cabinet Design

The enclosed cabinet structure helps provide a cleaner and more organized working environment. The closed design also supports a more streamlined machine appearance and production setup.

Product Advantages

• Automatic loading conveyor

• Optional hopper loading system

• Automatic flame treatment

• 10-station rotary structure

• Multi-color cylindrical product printing

• Optional automatic mechanical pre-registration

• LED UV or electrode UV curing options

• Multiple printing programs can be stored

• Closed cabinet design

• Suitable for cylindrical products without registration points

• Continuous automatic production

• High printing efficiency

• Compact and organized production workflow

Technical Specifications

Printing Capability

The 2 3 Colors 10 Stations Rotary Screen Printer is designed for cylindrical products with diameters ranging from Φ10 to 40 mm and product heights from 35 to 150 mm.

The rotary printing structure is suitable for products without a registration point, where stable product positioning and continuous rotary movement are important for the printing process.

Depending on product shape and production conditions, the machine can reach printing speeds of:

• Round products: 40–60 pcs/min

• Oval products: 40–60 pcs/min

• Square products: 30–40 pcs/min

Actual production speed may vary according to product dimensions, printing pattern, ink, curing configuration, and operating conditions.

Automatic Production System

The machine is equipped with an automatic loading conveyor to reduce manual feeding operations and improve production continuity. For applications requiring a larger or more automated feeding process, a hopper-based loading system can be selected as an optional configuration.

The automatic feeding structure is designed to work with the rotary printing process, helping maintain a continuous flow of products through the machine.

Surface Treatment

Automatic flame treatment is available to prepare cylindrical product surfaces before printing. This feature can be particularly useful for products requiring additional surface preparation as part of the printing process.

The integrated treatment and printing workflow helps reduce the need for separate manual surface preparation steps.

UV Curing Options

After printing, customers can choose between LED UV and electrode UV configurations according to the production process.

The standard LED UV power specification is 230 W. The appropriate curing configuration can be selected based on the printing material, ink system, product requirements, and desired production process.

Control and Program Management

The machine supports storage of multiple production programs, allowing different printing parameters to be saved for different cylindrical products.

This function can simplify product changeovers and reduce repeated parameter-setting work. Operators can select the appropriate stored program when switching between production orders.

Optional Configuration

The following optional configurations are available:

• Hopper loading system

• Automatic mechanical pre-registration

• LED UV curing

• Electrode UV curing

The available configuration can be selected according to product characteristics, printing requirements, and production volume.

Application

The Z103 rotary screen printer is suitable for cylindrical products without a registration point, including:

• Pen barrels

• Lipstick tubes

• Mascara tubes

• Cylindrical packaging

• Cosmetic containers

• Small cylindrical plastic products

• Cylindrical promotional products

• Other cylindrical articles requiring multi-color printing

It is particularly suitable for manufacturers looking for automatic screen printing equipment for continuous decoration of cylindrical products.

Why Choose This Rotary Screen Printer?

For cylindrical products without a registration point, the rotary printing structure provides a practical approach to continuous product decoration. The combination of automatic feeding, flame treatment, multi-color printing, optional pre-registration, and UV curing allows manufacturers to configure the machine according to their specific production requirements.

The ability to store multiple programs also makes the machine suitable for manufacturers handling multiple product types. Instead of setting printing parameters from the beginning for every production order, operators can use stored programs to simplify product changeovers.

The closed cabinet design provides a cleaner and more organized equipment structure, while the optional hopper loading system offers additional automation possibilities for higher-volume production.

Suitable Production Requirements

The machine can be considered for production environments requiring:

• Automatic cylindrical product printing

• Multi-color screen printing

• Continuous rotary printing

• High-speed product decoration

• Automated product feeding

• Integrated surface treatment

• UV-curable printing processes

• Multiple product program management

• Reduced manual loading operations

Product Summary

The 2 3 Colors 10 Stations Rotary Screen Printer provides an automated rotary screen printing solution for cylindrical products, combining automatic feeding, flame treatment, multi-color printing, program storage, and optional UV curing.

With support for cylindrical products from Φ10 to 40 mm in diameter and 35 to 150 mm in height, the Z103 is suitable for pen barrels, lipstick tubes, mascara tubes, and other cylindrical articles without registration points.

Contact Supplier

For machine configuration, printing requirements, optional functions, and production applications, contact Shenzhen Kar Lee Keung Electronic Equipment Ltd. to discuss your specific cylindrical product printing needs.

The 2 3 Colors 10 Stations Rotary Screen Printer can be configured with different loading, registration, and UV curing options to provide a practical automated printing solution for different production requirements.
