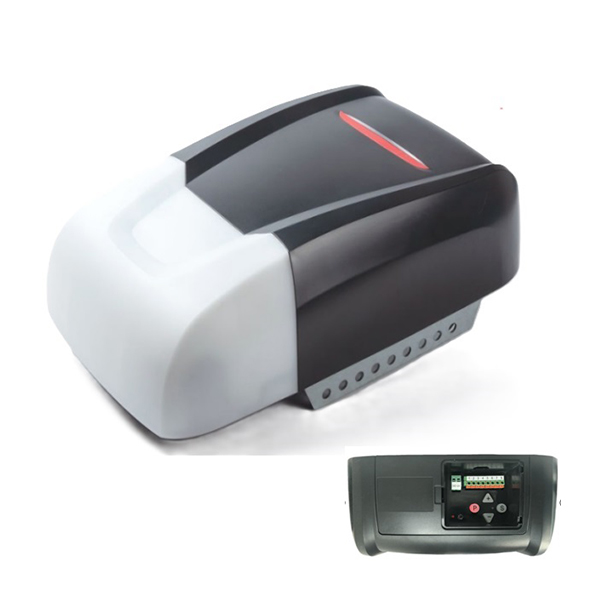

1000N,1200N Sectional Garage Door Opener U shape LED Illumunation Control Automatic Garage Gate Motors
U shape LED Courtesy lamp,Electronic limit switches,Manual release in case of power failure,Chain drive, belt drive, low noise,Metal chassis,Battery backup connector(24V),Wall switch connector
U shape LED Courtesy lamp
Electronic limit switches
Manual release in case of power failure
Chain drive, belt drive, low noise
Metal chassis
Soft start, soft stop
Battery backup connector(24V)
Wall switch connector
Photocell connector
Auto safety reverse
External fuse（optional)
Caution light (optional)
Pass door protection (optional)
Parameters
|
Model |
ZTQ1-800 |
ZTQ1-1000 |
ZTQ1-1200 |
|
Import Voltage |
220-240V/110-127V,50-60Hz |
||
|
Bottom base Material |
Plastic |
||
|
Applies to T/C rail |
Yes |
||
|
LED light |
Yes |
||
|
Max.opening speed |
160mm/Second |
||
|
Max.door height |
2400-5000mm |
||
|
Drive |
Chain/Belt |
||
|
Radio frequency |
433.92mhz |
||
|
Rail Material |
Steel/Alu |
||
|
Coding |
Rolling code |
||
|
Packing |
Export carton box/Pallet |
||
|
Max.Door Area |
8㎡ |
11㎡ |
13㎡ |
|
Max.Door weight(Balanced) |
120Kg |
140Kg |
160Kg |
