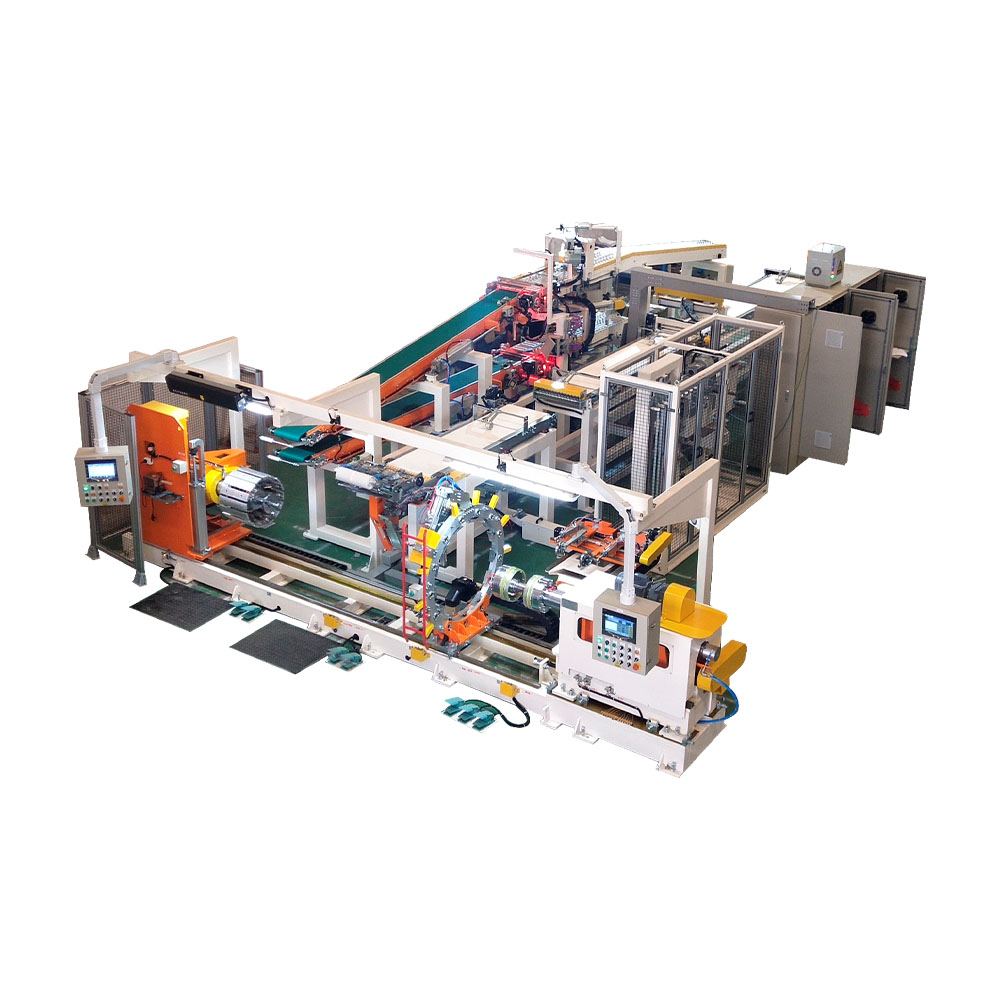

High Precision Second-Stage Tire Building Machine
● Suitable for the production of second-stage HP/UHP/SUV/MT/AT tires ● MITSUBISHI/SIEMENS/AB control systems are optional ● Automatic deviation correction of belt feeding rack, pre-cutting
Product Features:
-
Suitable for the production of second-stage HP/UHP/SUV/MT/AT tires
-
MITSUBISHI/SIEMENS/AB control systems are optional
-
Automatic deviation correction of belt feeding rack, pre-cutting, automatic belt drum (joint detection is optional)
-
Full range of servo for main engine/rear pressure mechanism transmission mechanism, ensuring tire molding quality and efficiency
-
The crown strip adopts displacement sensor and proportional valve to control the tension from 5-50N
-
Belt top and bottom can be selected
-
Various crown strip laying methods
-
Automatic deviation correction of belt CCD camera
-
Ultrasonic cutting of tread, heating of the incision of the head and tail
Equipment Parameters:
Item |
Parameters |
Tire specifications |
10″~16″ (14″-18″, 17″-21″) |
Tire process |
Crown side |
Applicable belt drum outer diameter |
φ400~φ580mm |
Applicable belt drum width |
350mm |
Radial rolling range of combined rollers |
φ390~φ750mm |
Axial rolling range of combined rollers |
50~530mm |
Clamping range of belt layer transfer ring |
φ390~φ820mm |
Width range of two-stage forming drum (expansion and contraction chuck) |
120~600mm |
Belt layer width |
70~260mm |
Belt layer cutting angle |
18~45° |
Belt layer cutting fixed length |
±2mm |
Tread width |
100~310mm |
Tread ultrasonic cutting angle |
20~35° (angle with horizontal direction) |
Single crown strip width |
10~25mm |
Crown strip fitting width |
70~270mm |
Single tire working efficiency |
<55 seconds (12 inches, one layer of winding method) |
Equipment Accuracy:
Item |
Accuracy |
Base rail horizontal accuracy |
≤0.05mm/1000mm (≤0.2mm/full length) |
Radial runout of the second-stage forming drum main shaft |
≤0.15mm |
Coaxiality of the second-stage main machine and the belt transfer ring |
≤0.3mm |
Coaxiality of the belt drum and the belt transfer ring |
≤0.25mm |
Radial runout of the belt drum main shaft end |
≤0.05mm |
Band transfer ring end face (processing reference surface) runout |
±0.2mm |
(Measured based on the second-stage forming drum main shaft) |
±0.2mm |
Band transfer ring end face (processing reference surface) runout |
≤±0.5° |
(Measured based on the belt drum main shaft) |
≤±0.50mm |
Laminating drum positioning stop accuracy |
≤0.6mm |
Forming head width adjustment positioning error |
≤1mm |
Line marking light line width |
18~45° |
Line marking light position accuracy |
Butt joint 0~-1 steel wire |
Belt steel wire angle |
±1mm |
Belt joint form |
20°~35° |
Belt laminating centering |
Bevel joint |
Tread cutting slope |
±1mm |
Tread joint form |
±2mm |
Tread laminating centering accuracy |
0~1mm (flat laying method) |
Tread fixed length accuracy |
±1mm |
Crown band winding gap deviation |
±10mm |
Crown band winding total width |
±0.1mm |
Crown band head and tail joint spacing |
±1mm |
