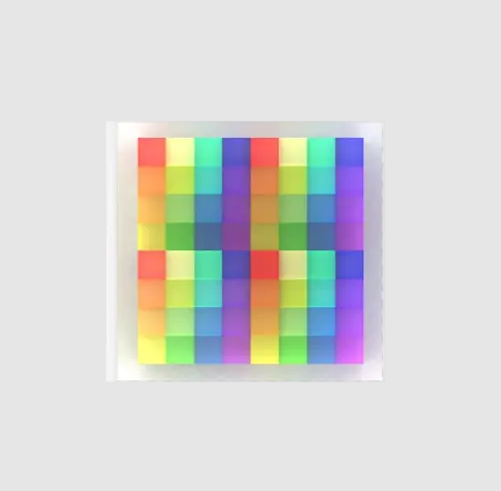

Tile-Type Hyperspectral Filter
Tile-Type Hyperspectral Filter
This tile-type hyperspectral filter is designed for multispectral and hyperspectral imaging systems, supporting precise spectral separation across visible and infrared wavelength ranges. It is suitable for integration into compact optical modules where high channel density and stable spectral performance are required.
Key Performance Specifications
-
Operating Wavelength Range: Visible light and infrared bands
-
Single Channel Size: Millimeter-scale precision structure
-
Number of Spectral Channels: > 8 channels
-
Full Width at Half Maximum (FWHM): 5–20 nm spectral bandwidth
-
Peak Transmission Efficiency: 50% – 90%
-
Out-of-Band Suppression: < 0.5%
Product Characteristics
-
Supports multi-channel spectral segmentation for hyperspectral imaging applications
-
Compact tile-format design suitable for miniaturized optical systems
-
Narrowband filtering capability for improved spectral resolution
-
High transmission efficiency across target wavelength bands
-
Strong out-of-band rejection performance for enhanced signal purity
Application Scope
This hyperspectral filter is commonly used in:
-
Remote sensing and Earth observation systems
-
Industrial machine vision and spectral inspection
-
Biomedical and laboratory imaging equipment
-
Material classification and chemical analysis systems
-
Precision optical measurement instruments
Integration Notes
The tile-type structure allows flexible arrangement within optical assemblies, enabling scalable multi-channel system design. Its millimeter-level channel architecture supports high-density integration in compact hyperspectral imaging platforms.
